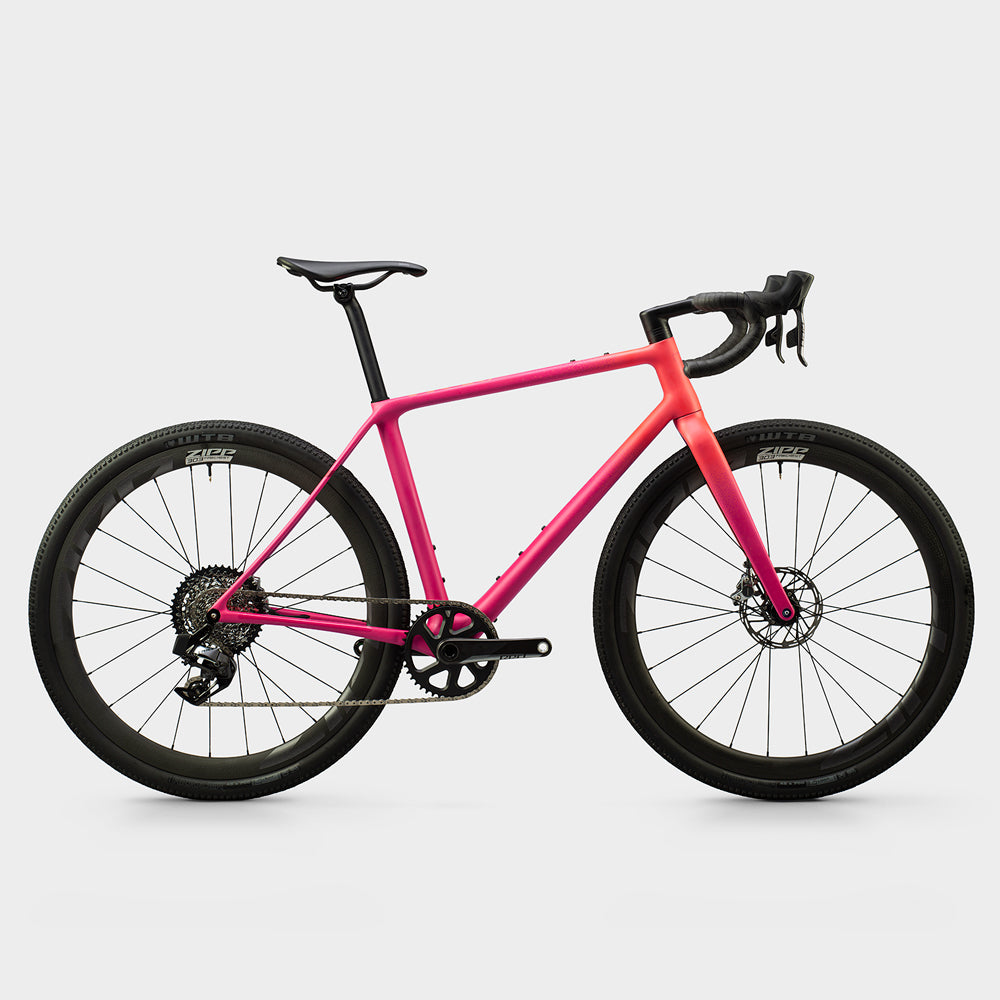

V+1 Race Edition Red eTap XPLR 12 speed

V+1 Race Edition Red eTap XPLR 12 speed

Regular price £7,699.00 GBP
Regular price Sale price £7,699.00 GBP
Sale Sold out
Shipping calculated at checkout.

The Vielo V+1 Race Edition is our lightest, fastest and most integrated gravel frame. The frame is exclusively designed for wireless shifting, with the brake hoses routed internally though our one-piece carbon bar and stem.

Our V+1 gravel bikes can all take up to 50mm tyres (700x or 650b wheels), are designed exclusively for 1x giving you the ultimate balance of speed, comfort and confidence.

This bike is built with a SRAM Red group set, the full specification can be found below. Here you can order the bike tuned to your specific needs. Pick you Frame size, bar width, stem length, chain ring and crank length and we’ll build it for you!


Always bespoke builds

Each bike will be built to order, to your desired specifiation. You pick the parts that fit you from the start. Ensuring the correct bar width, stem length, crank length and chainring size for you.


Frame Vielo V+1 Race Edition carbon frame with full internal cable routing (Exclusively designed for SRAM wireless Groupsets) 880g Raw weight
Fork Vielo V+1 Race Edition carbon Fork with full internal cable routing
Colours Acid Red / Pink Fade of V+1 Logos
Handlebars Vielo Carbon Bar-Stem unit. Bar width 40cm, 42cm, 44cm
Stems Vielo Carbon Bar-Stem unit. Stem length 90, 100, 110mm
Headset Vielo by Token
Wheels Zipp 303s
Tyres Continental Terra Hardpack 700 x 50mm
Crankset SRAM Red crank arm with Vielo CNC machined chain ring
Bottom Bracket Token Ninja BB386 Evo Pressfit
Chain SRAM 12 speed
Rear Mech SRAM Red XPLR e-tap wide for 10-44
Cassette SRAM Red XPLR wide 10-44 XG-1271
Shifters SRAM Red e-tap AXS shifters / levers
Rotors SRAM Paceline 140mm rear, 160mm front
Saddle Selle Italia SLR Novus Boost Evo X-Cross carbon rail saddle
Seat post Vielo Carbon 30.9mm x 400mm
Axles Vielo A2T Fast thread axle with Quick Release handles. 12x100mm /   12x142mm

Size or dimensions

SEAT TUBE (in mm) 410 445 480 515 550
TOP TUBE HORIZONTAL (in mm) 505 530 555 580 605
HEAD TUBE (in mm) 100 122.5 145 165 187.5
CHAIN STAY HORIZONTAL (in mm) 435 435 435 435 435
BB DROP (in mm) 72.5 72.5 70 70 70
SEAT TUBE ANGLE (in °) 75,25 74,75 74,25 73,75 73,25
FORK RAKE (in mm) 48 48 48 48 48
FORK LENGTH (in mm) 407.5 407.5 407.5 407.5 407.5
HEAD TUBE ANGLE (in °) 70 70.25 70.50 70.75 71
WHEEL BASE (in mm) 1017.6 1038.7 1056.8 1075.6 1092.7
REACH (in mm) 364.9 380 393.1 408 419.5
STACK (in mm) 530.3 552.2 572.1 592.2 614.3
RIDER HEIGHT (imperial) 5'3" - 5'6" 5'5" - 5'9" 5'8" - 6'1" 6' - 6'4" 6'3" - 6'7"
RIDER HEIGHT (metric) 160 - 167 165 - 175 173 - 184 183 - 193 190 - 201

Shipping & Returns

UK Deliveries
All UK deliveries are sent by express courier, usually on a next working day delivery. In stock parts, accessories and clothing orders placed before 1pm we’ll aim to dispatch the same day. All deliveries of bikes are made to order, so please allow up to 3 working days for build time before dispatch.

Built Bikes

Built bikes are shipped in large box, 95% assembled. When you receive
the box all you’ll need to do is insert the wheels, attach your pedals
and set your saddle height. If you’ve provided your bike fit data to us
we will have marked your saddle height on the seat post for you. Torque
settings, manuals and first steps videos are all available in our Vielo
owners area. All deliveries will be dispatched with tracking numbers
emailed to you.

Bikes are sent via Next Working day Courier. Some deliveries in areas
such as the highlands or islands will require additional time for
deliveries. 99.9% of our deliveries arrive on time, however sometimes
delays in transit happen. If your order is time critical please let us
know in advance and we’ll do all we can.

Read more here

International Pricing

At we display all our prices in GBP £ including UK VAT at 20%.

International prices vary for each country due to import duties, tariffs, currency differences and local taxes. For pricing in your local currency,
including having the bike built to your desired specification, please contact your local dealer or us directly at

Read more here


Vielo Frames come with a 5 Year warranty when registered at

We also offer a Crash replacement policy to customers to help them get back on the road or gravel in the event of an accident

Read more here

Cycle to Work scheme

At Vielo we accept the following forms of Cycle to Work Schemes;


Cycle Scheme

Cycle Scheme

Green Commute

Green Commute Initiative
Cycle Solutions Cycle Solutions
Gogeta gogeta
Vivuplogo Vivup

If you would like to order your Vielo using one of these schemes please contact us directly so we can process your vouchers. You can email us at

Cycle to Work Scheme order process

1 – Contact us (phone or email) to request a quote and check stock availability.

2 –  We’ll email you a quote with all the details about your bike.

3 – We normally ask for a £100 refundable deposit to hold the frame and parts for your bike build.

4 - You request a Cycle to Work voucher from your employer for the value of the bike.

5 – When your voucher arrives, you send it to us. We can then build your bike, claim the voucher and refund your £100 deposit.

You can email us at to start the process at any time.

All Pictures shown are for illustration purpose only. Actual product specification may vary due to product enhancement.
