R+1 Alto SRAM Force AXS 12 Speed

R+1 Alto SRAM Force AXS 12 Speed

Regular price £5,999.00 GBP
Regular price Sale price £5,999.00 GBP
Sale Sold out
Shipping calculated at checkout.

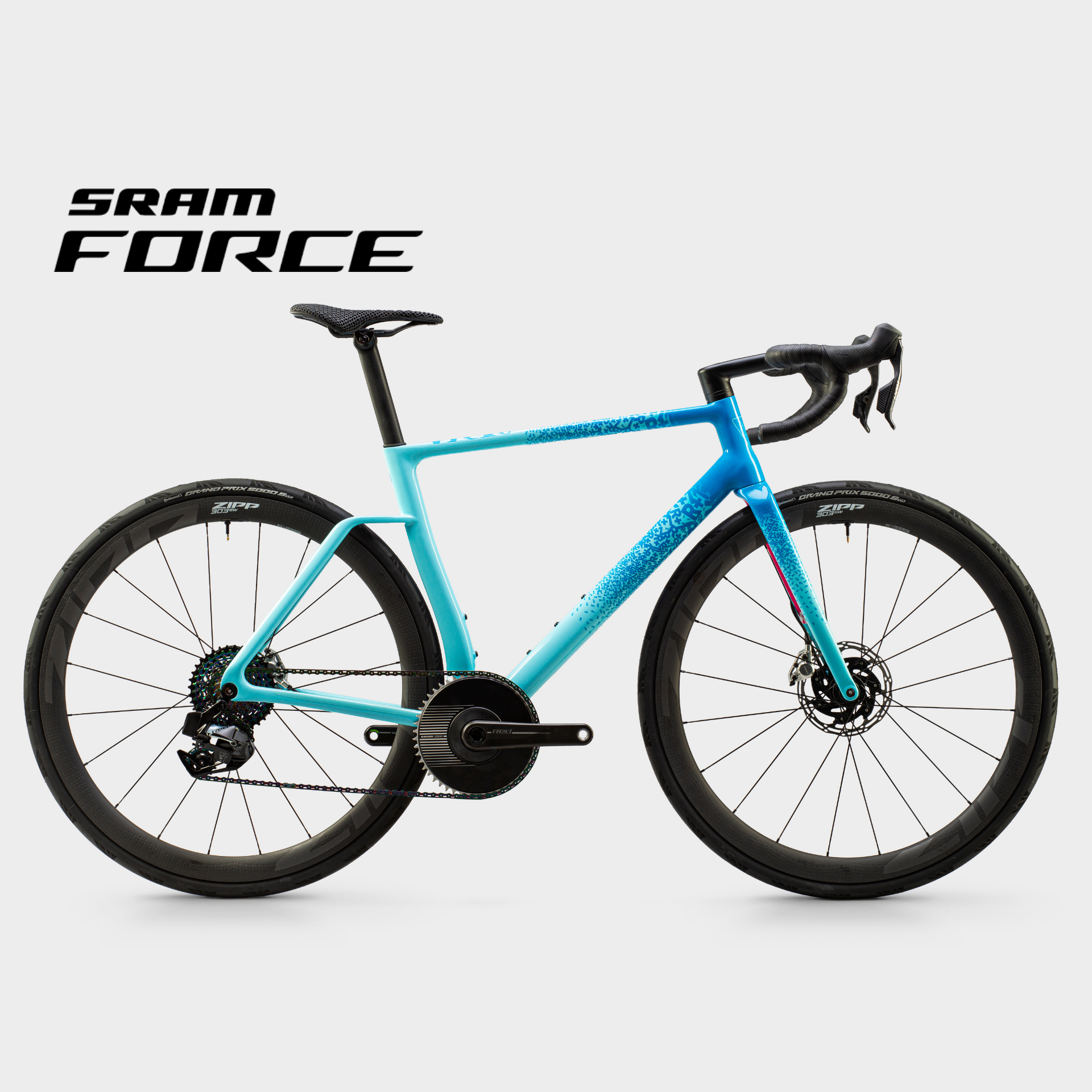

The Vielo R+1 1x Road bike with Sram Force eTap AXS Groupset.

A revolutionary road bike designed to redefine your riding experience with the latest advancements in cycling technology. Engineered for maximum performance and versatility, the Vielo R+1 with Sram Force 1x groupset offers a winning combination of simplicity, efficiency, and precision.

With its 1x drivetrain configuration, the Vielo R+1 eliminates the front derailleur, streamlining your bike's design and reducing weight without sacrificing gear range. This innovative system delivers crisp, reliable shifting even in the most demanding conditions, ensuring that you always find the right gear when you need it most.

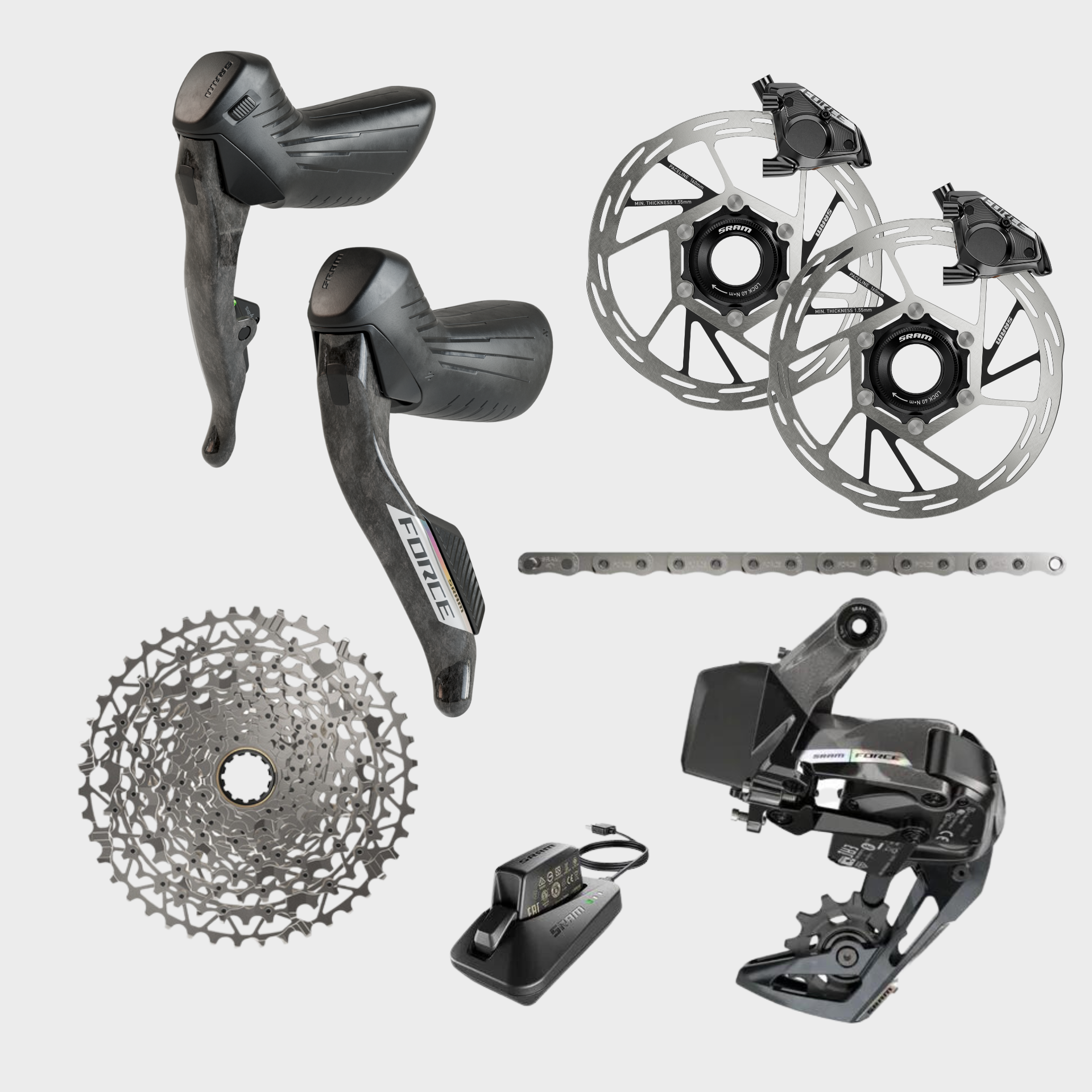

The Sram Force 1x groupset features a wide-range cassette and a single chainring, providing you with the perfect gear ratios for conquering steep climbs and powering through fast descents with ease. Whether you're attacking the steepest gradients or sprinting for the finish line, the Vielo R+1 with Sram Force 1x groupset gives you the confidence to push your limits and achieve your goals.

But the benefits of 1x don't stop there. By simplifying your bike's drivetrain, the Vielo R+1 with Sram Force 1x groupset reduces maintenance requirements and improves reliability, so you can spend less time tinkering and more time riding. Plus, with fewer moving parts, there's less risk of mechanical issues, allowing you to focus on enjoying the ride without distractions.

Want even more range? Add The Classified Powershift System. A revolutionary drivetrain technology that seamlessly integrates electronic shifting with a unique internal hub gear system. It offers cyclists the ability to shift gears instantly and silently, with the versatility of an electronic drivetrain and the reliability of a hub gear system.

Whether you're a seasoned racer, an adventurous explorer, or a weekend warrior, the Vielo R+1 with Sram Force 1x groupset is the ultimate choice for riders who demand performance without compromise

Always bespoke builds

Each bike will be built to order, to your desired specifiation. You pick the parts that fit you from the start. Ensuring the correct bar width, stem length, crank length and chainring size for you.

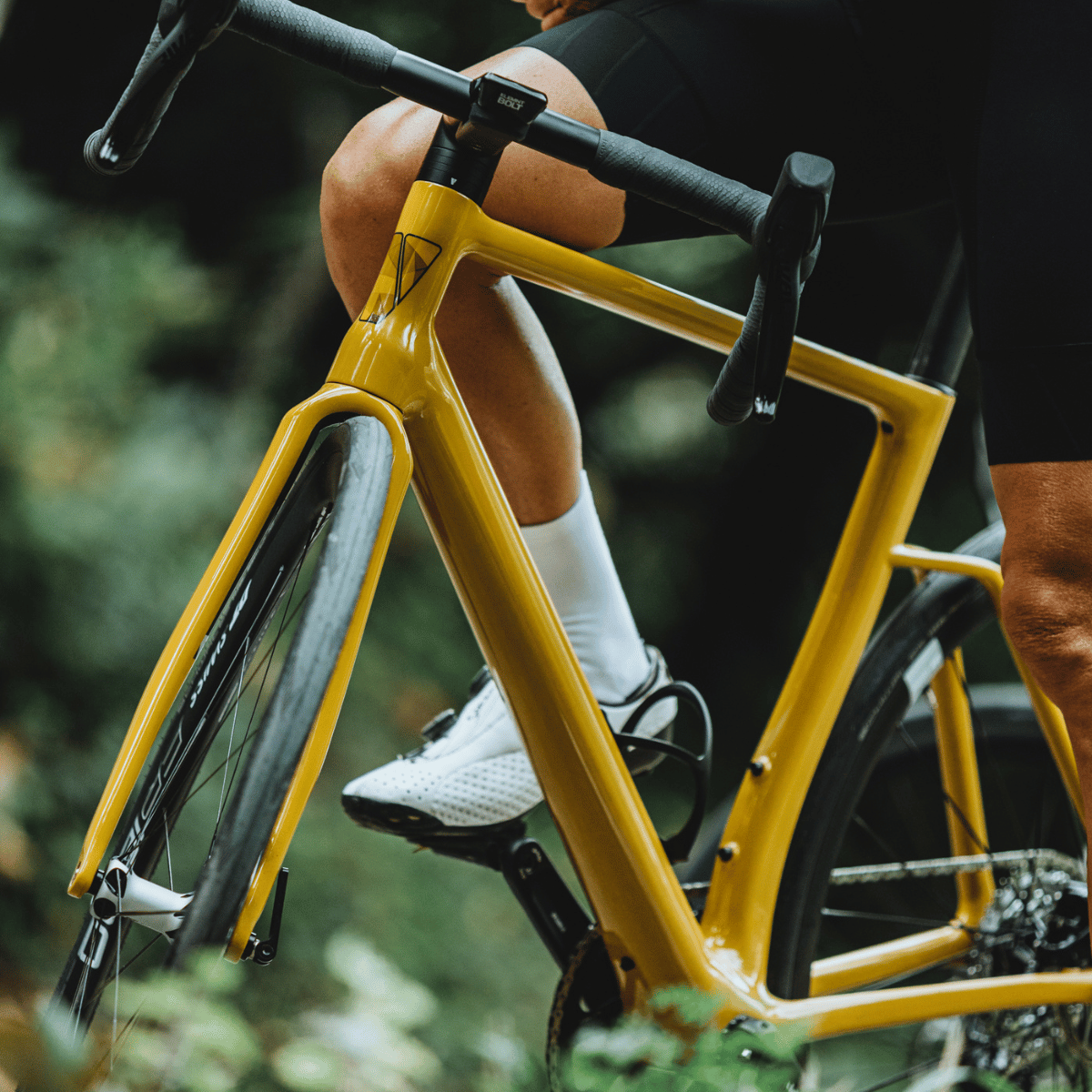

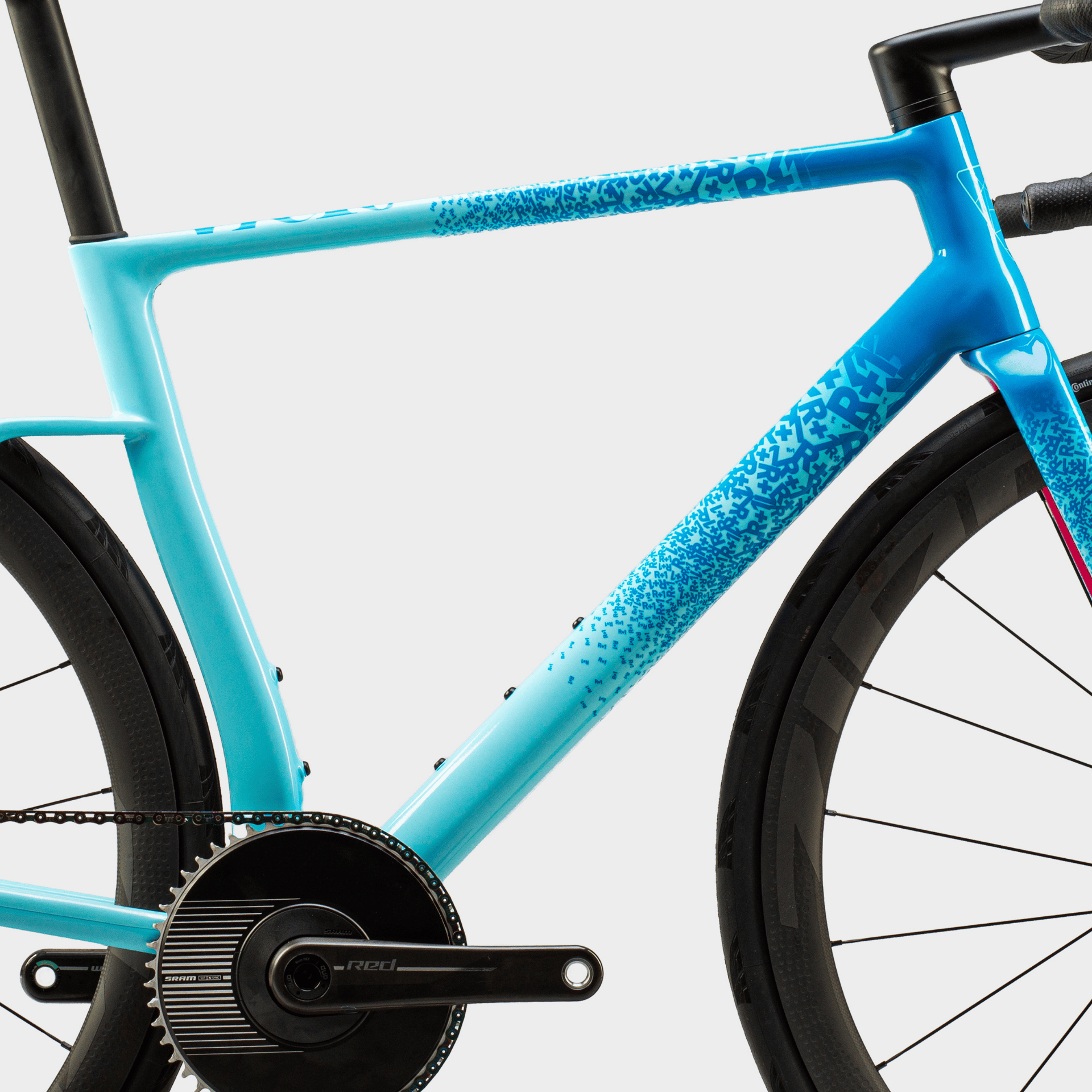

Frame Vielo R+1 Alto carbon frame with full   internal cable routing (Exclusively designed for SRAM wireless Groupsets)   880g Raw weight

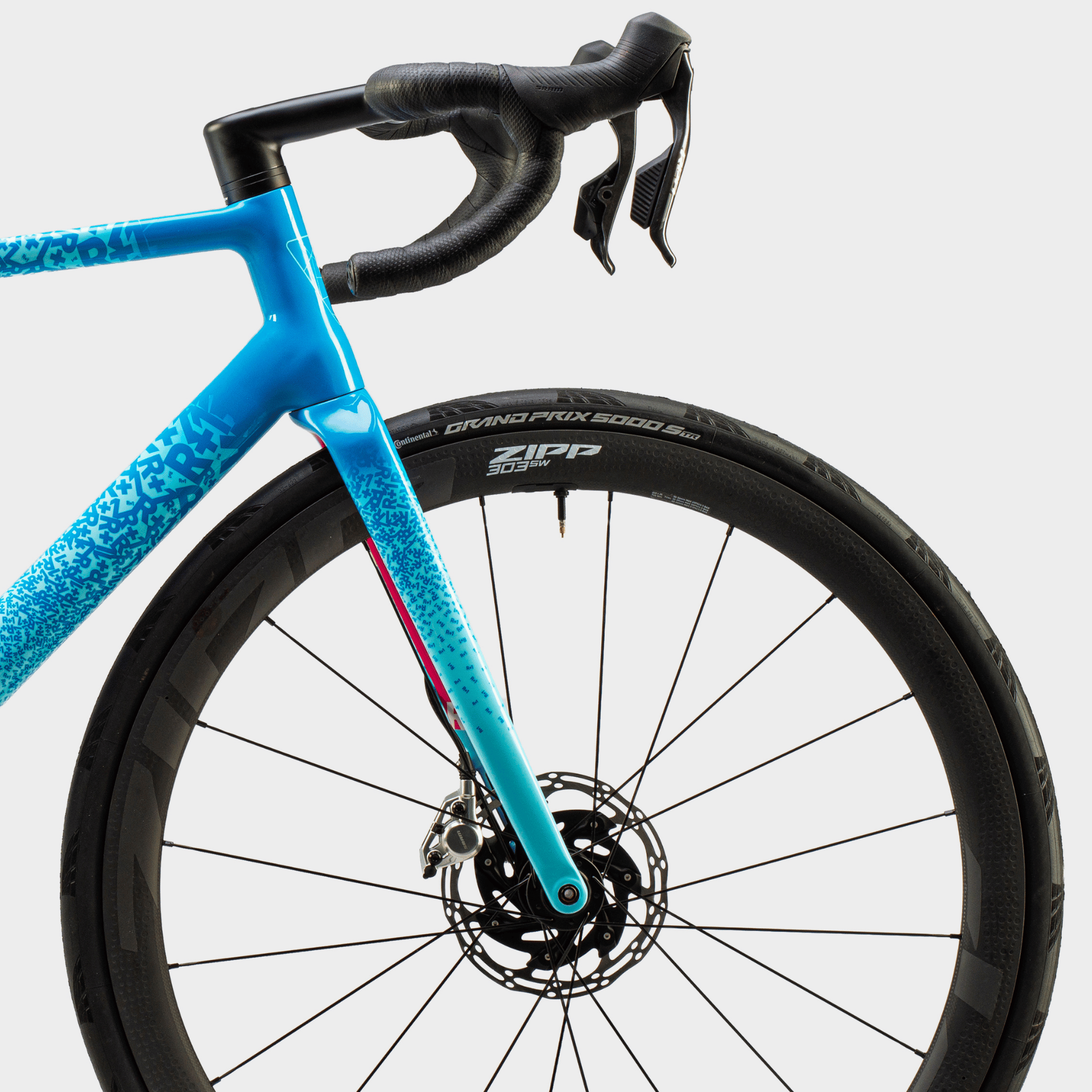

Fork Vielo R+1 Alto carbon Fork with full internal cable routing
Colours Mustard Yellow or Anthracite or Cyan Blue

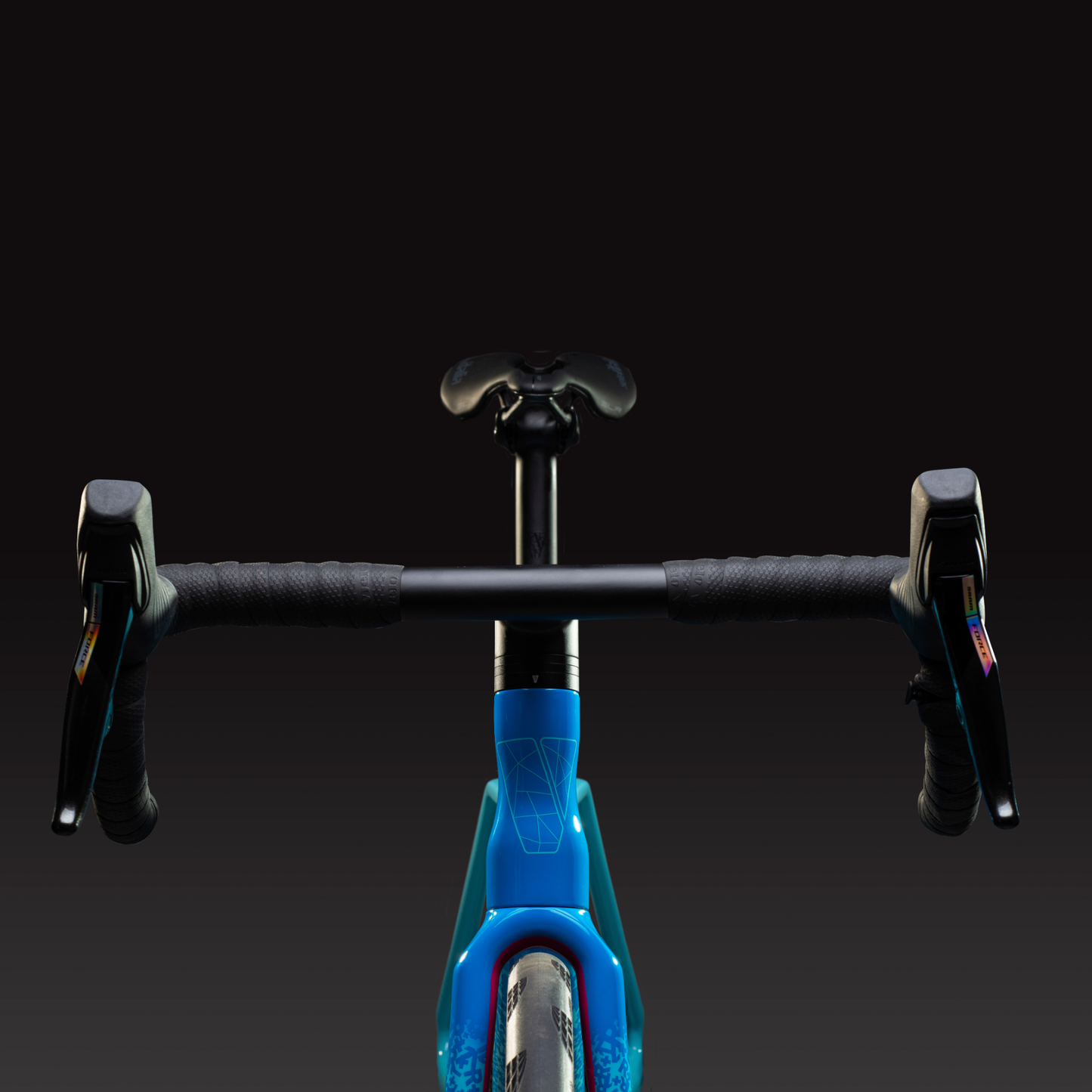

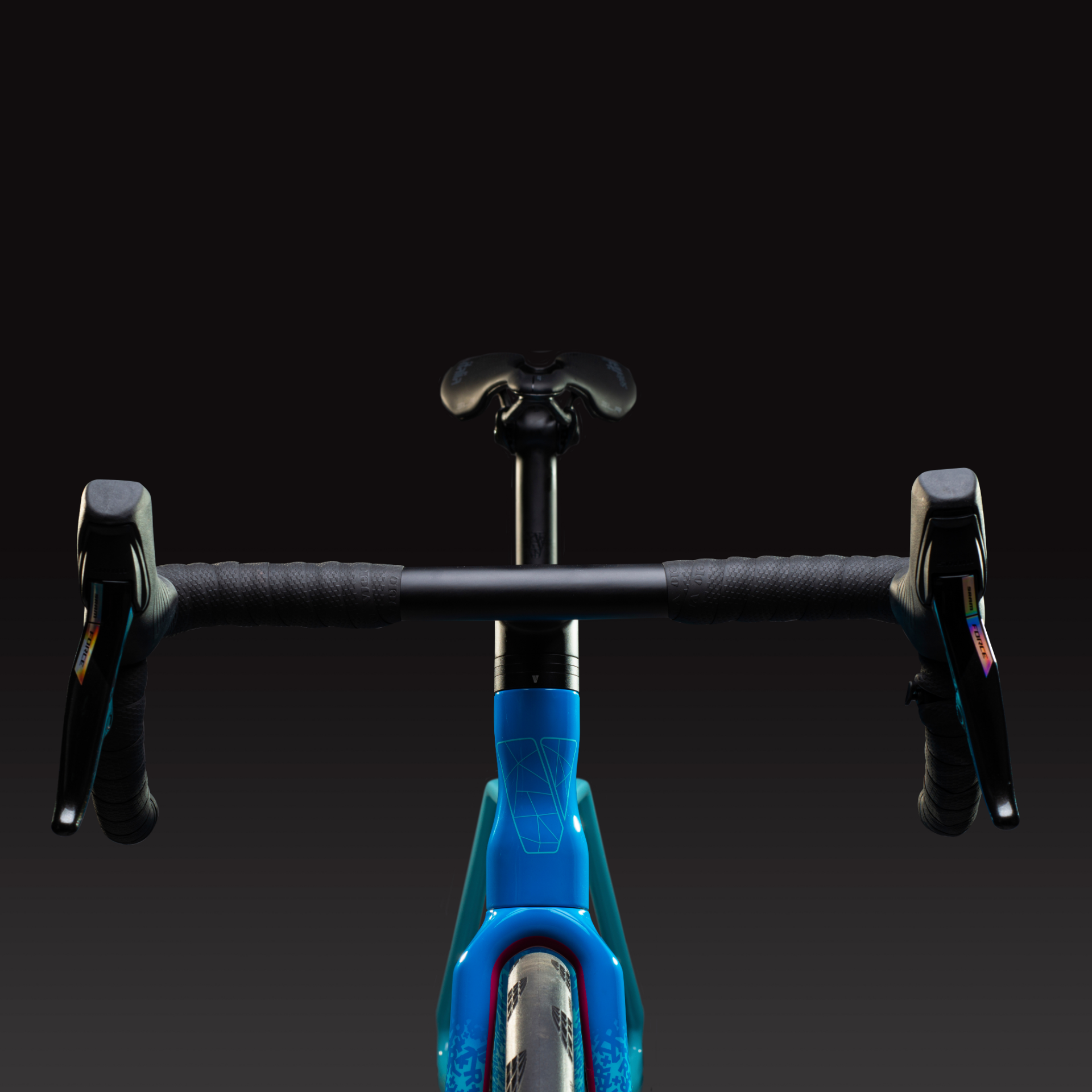

Handlebars Requires Vielo one piece bar stem combo. Available in various options
Stems Requires Vielo one piece bar stem combo. Available in various options
Headset Vielo by Token
Wheels Zipp 303s Carbon wheels 45mm deep
Tyres Continental GP5000 700x32 supplied Tubeless with Orange Seal

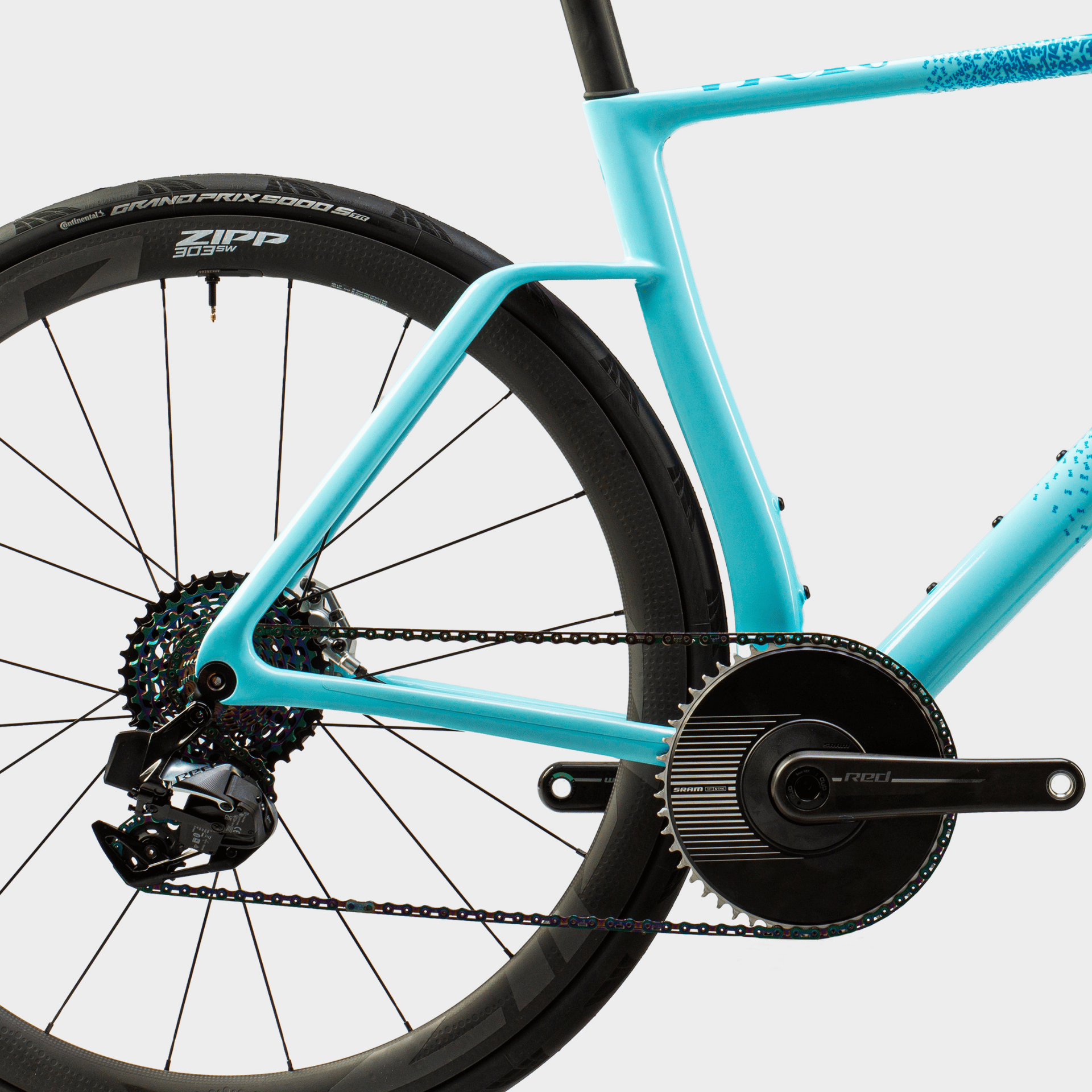

Crankset SRAM Force D2 crank arm with Vielo CNC machined chain ring. Available in various options
Bottom Bracket Token Ninja BB386 Evo Pressfit
Chain SRAM 12 speed chain
Rear Mech SRAM Force D2 eTap AXS for either 10-36 or 10-44
Cassette SRAM Force 10-36 (XG-1270) OR 10-44 XPLR (XG1271)
Shifters SRAM Force D2 eTap AXS shifters / levers
Rotors SRAM Paceline 140mm rear, 160mm front
Saddle Selle Italia SLR Boost Super flow Carbon rail
Seat post Vielo Carbon Kam tail shape
Axles Mustard or Anthracite - Vielo A2T Fast thread axle with Quick Release handles. 12x100mm / 12x142mm

Cyan Blue - Handle free Thru bolt axles with 1.5mm thread. 12x100mm and   12x142mm




Size or dimensions

SEAT TUBE (in mm) 420 455 490 520 550
TOP TUBE HORIZONTAL (in mm) 505 530 555 580 605
HEAD TUBE (in mm) 100 120 142.5 165 187.5
CHAIN STAY HORIZONTAL (in mm) 400 400 400 400 400
BB DROP (in mm) 77 74.5 72 72 69.5
BB HEIGHT (@30 mm tyre) 270.5 273 275.5 275.5 278
SEAT TUBE ANGLE (in °) 75,25 74,75 74,25 73,75 73,25
FORK RAKE (in mm) 47 47 47 47 47
FORK LENGTH (in mm) 375 375 375 375 375
HEAD TUBE ANGLE (in °) 70,25 70,75 71,25 71,50 71,75
WHEEL BASE (in mm) 975,6 993,9 1011,4 1030,4 1047,4
REACH (in mm) 371,5 387,7 401,1 415,5 428
STACK (in mm) 505.2 523,7 543,9 566,4 586,4
BB TO FORK CENTRE (in mm) 580,8 598,6 615,6 634,5 651,1
RIDER HEIGHT (imperial) 5'3" - 5'6" 5'5" - 5'9" 5'8" - 6'1" 6' - 6'4" 6'3" - 6'7"
RIDER HEIGHT (metric) 160 - 167 165 - 175 173 - 184 183 - 193 190 - 201
