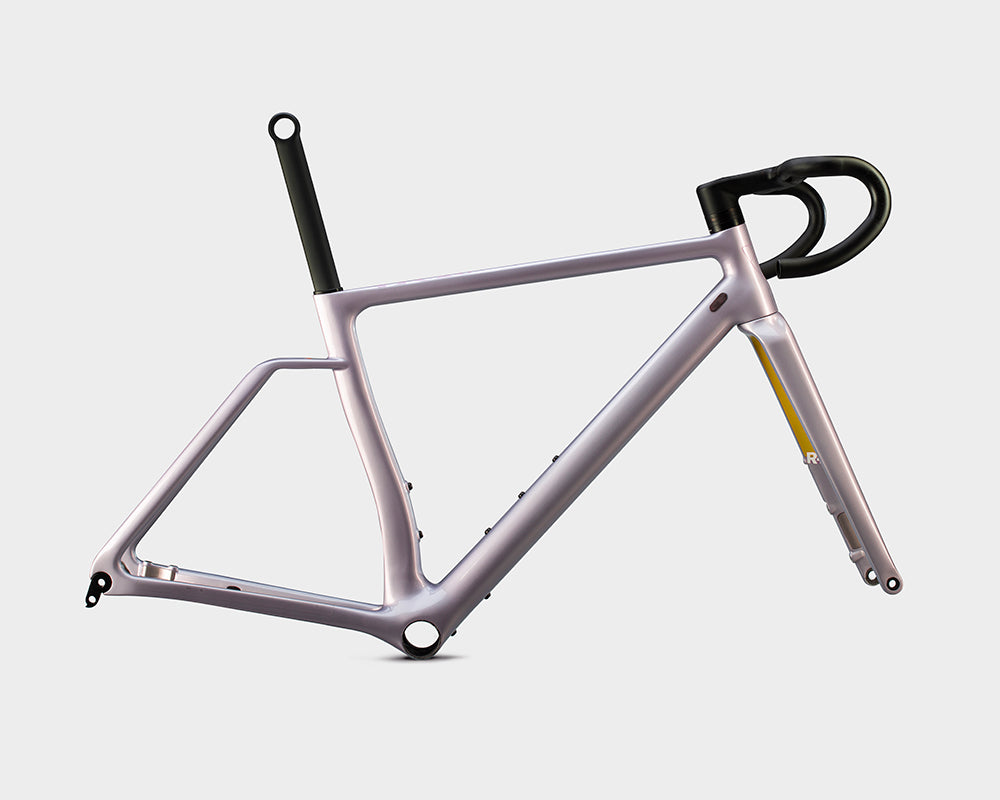

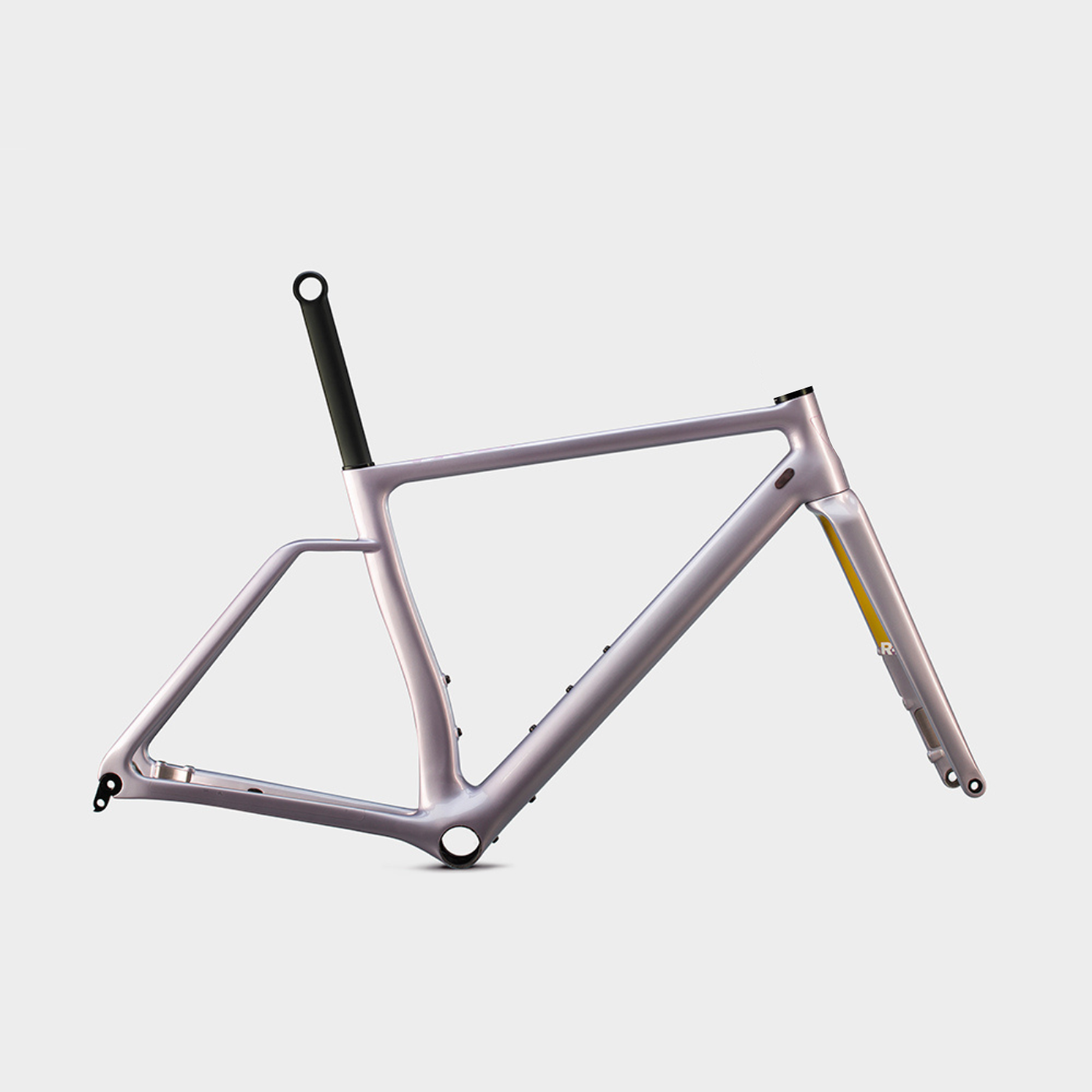

Vielo R+1 Strato Frameset in Lilac.
The R+1 Lilac frameset is compatible with Campagnolo, Shimano and Sram 1x offerings. You can build it with a mechanical, electronic or wireless group set.
The frame has a semi integrated cable routing, so the shift and brake cables enter the frame either side of the head tube, and on the non drive side of the fork. You cant run this frame fully integrated and make all the cables hidden.
The R+1 Strato is the same frame mould as the R+1 Alto. The only difference is the strato is 200g heavier at 1100g and is compatible with mechanical and di2 groupsets.
Vielo Road and Gravel Bikes Autumn Sale – Must End 6th October !
Our Autumn sale is now on. For a limited time you can get an incredible deal on Vielo V+1 Gravel bike frames or bikes fully built with Sram Rival AXS wireless group sets. We’ve also got a final reduction on the Vielo R+1 Strato road frames, as well as some of the popular Vielo chainrings, cranks and bar stem combos. The sale is strictly stock limited, when they’re gone they’re gone!
Reviews
Cyclist Magazine - 10/10 "For my money Vielo has created one of the best looking, and one of the best riding road bikes i've ever had the pleasure to test". Read it here: Cyclist magazines perfect Vielo Review
Road.cc 9/10 "Stunning frameset for both performance and looks that embraces the very latest components. Beautifully balanced handling, awesome stiffness, impressive comfort and excellent build quality" Read the review here Road.cc love the Vielo R+1
BikeRadar - 8/10 "A road smoothing 1x machine that will stand out from the crowd and let you enjoy the ride" Read the review here Bike Radar's mega review of the R+1 with Rival
What's included in the box;
| Frame | Vielo R+1 Strato carbon frame with semi internal cable routing for all groupsets 1100g Raw weight |

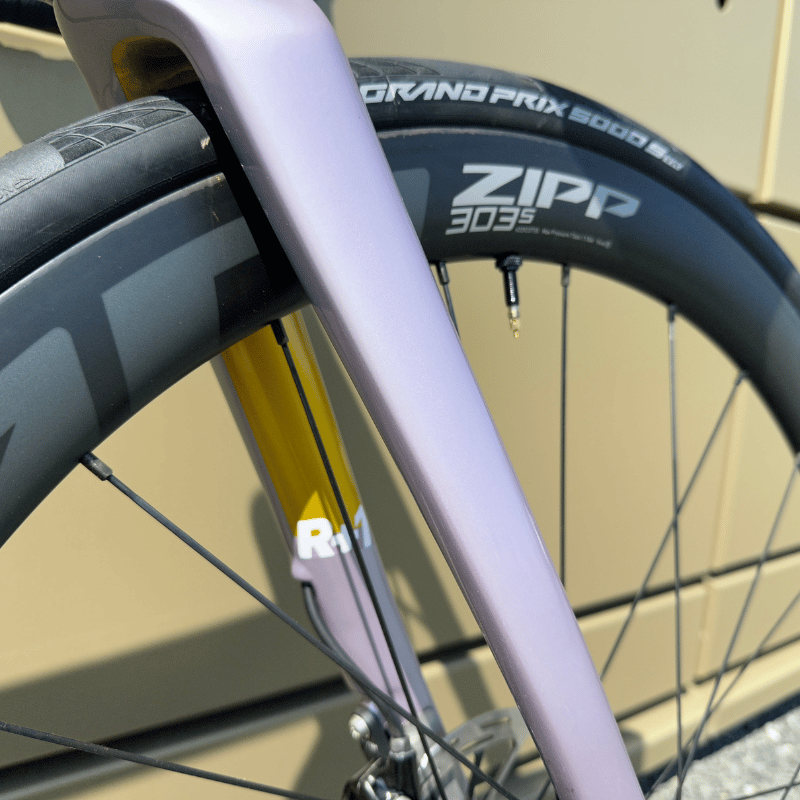

| Fork | Vielo R+1 Strato carbon fork with semi internal cable routing |

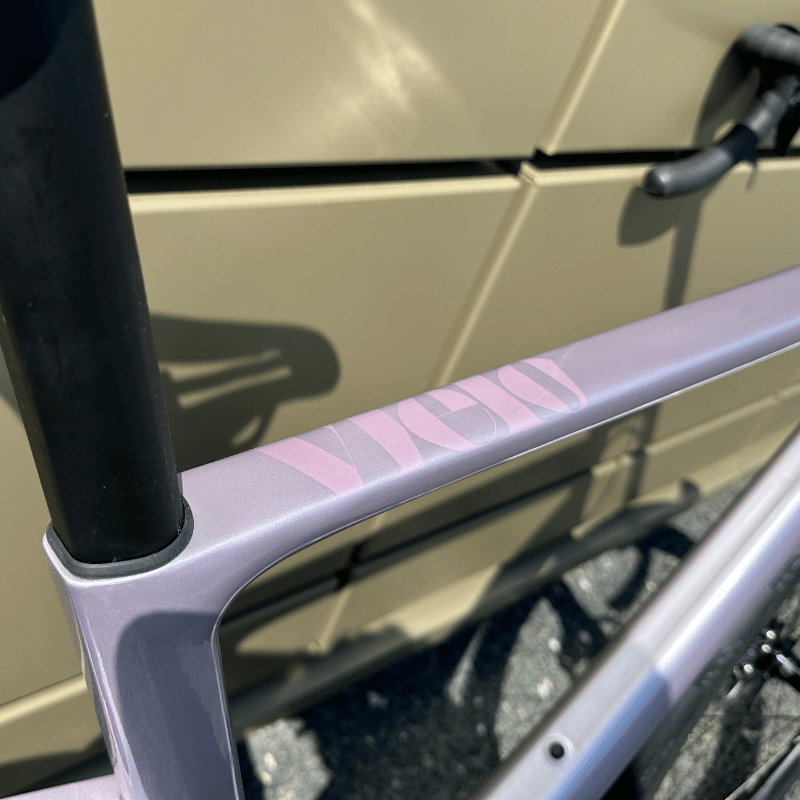

| Colours | Lilac main frame colour with gold fork and seatstay highlights |
| Headset | Vielo by token |
| Axles | Vielo A2T Fast thread axle with Quick Release handles. 12x100mm / 12x142mm |
| Mech Hanger | Vielo Gen 2 CNC machined for A2T Thru axle |
| Small Parts | Incl bottle cage bolts, anti rattle foam |
| Seat Post | Vielo Carbon Kam tail shape |
Usefull information;
- Recommended tyre size: 32mm

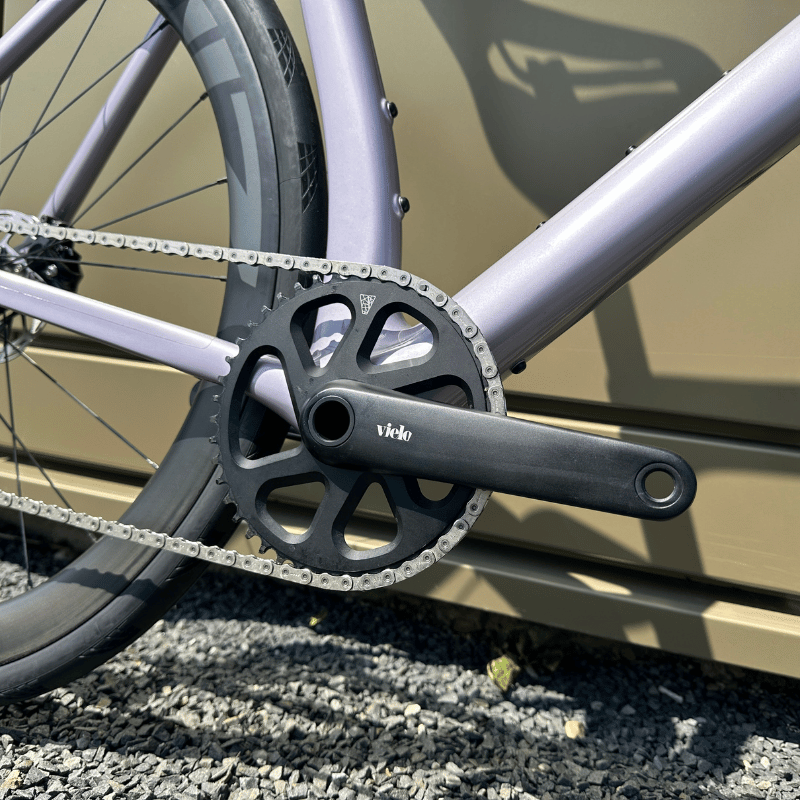

- Bottom Bracket requirement: BB386 Evo Pressfit
- Chainline : 47.5mm

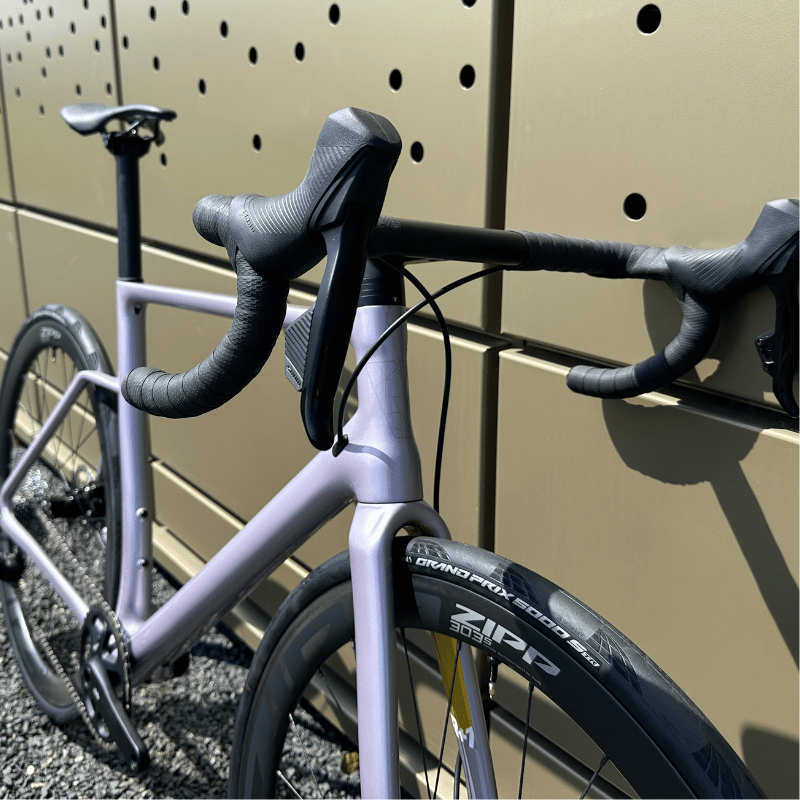

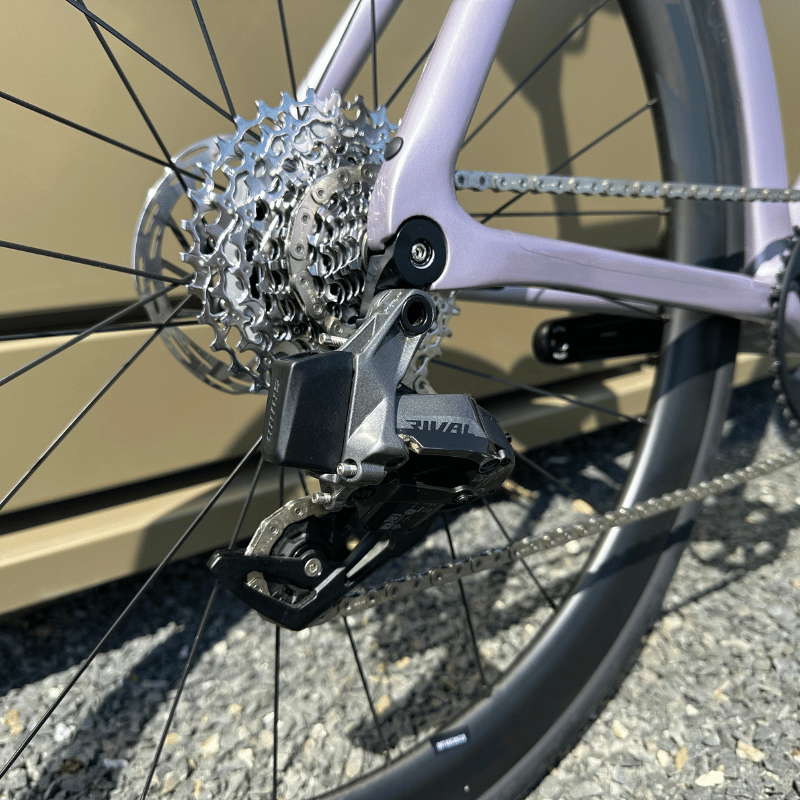

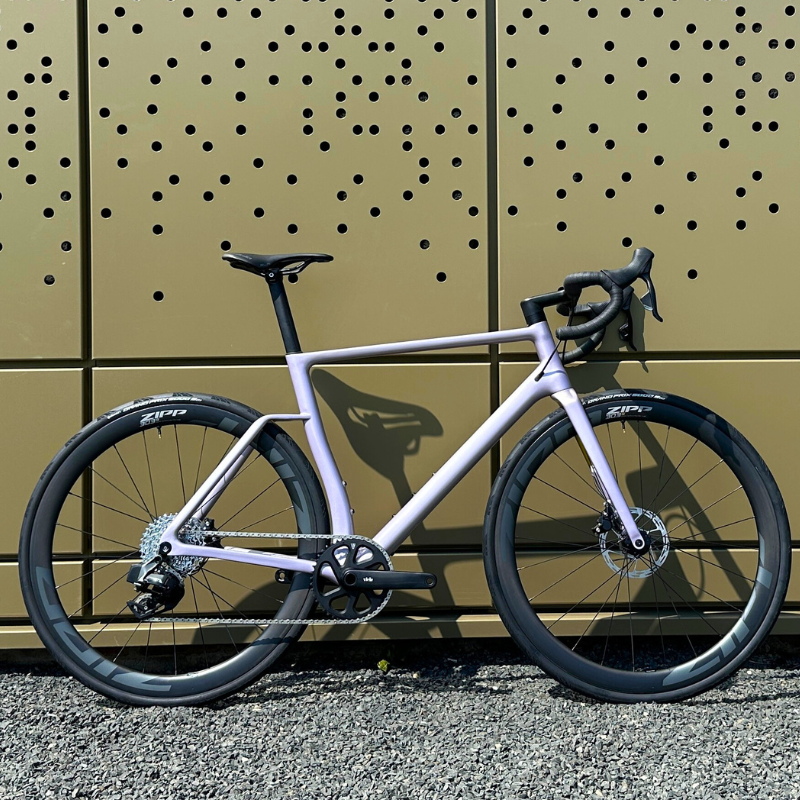

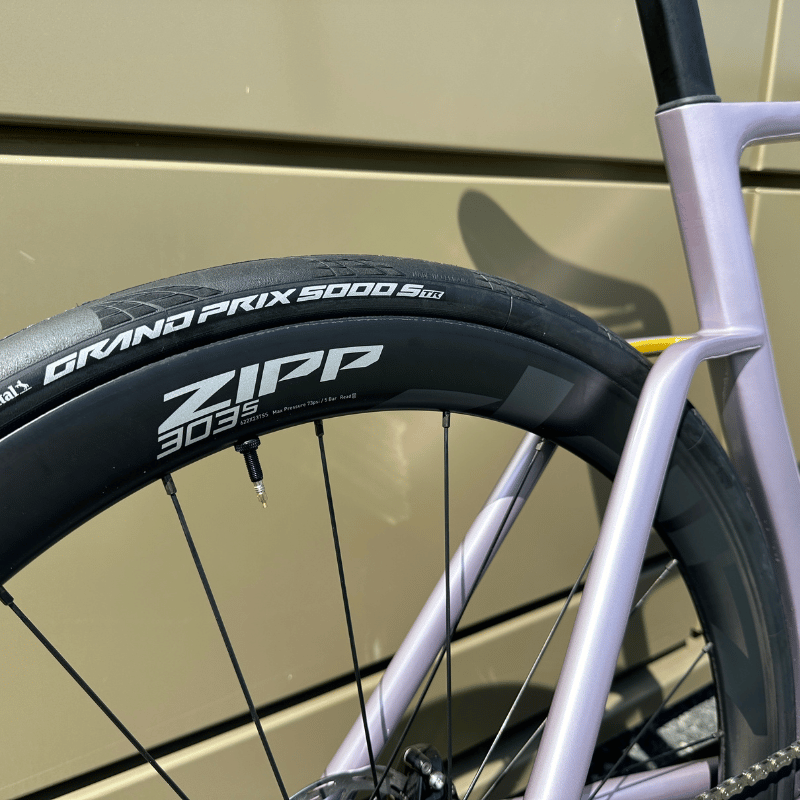

Photos showing a fully built bike are for illustration purposes only to demonstrate how the bike might look fully built. This price is for a frame set only.
Size or dimensions
Size or dimensions
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| SEAT TUBE (in mm) | 420 | 455 | 490 | 520 | 550 |
| TOP TUBE HORIZONTAL (in mm) | 505 | 530 | 555 | 580 | 605 |
| HEAD TUBE (in mm) | 100 | 120 | 142.5 | 165 | 187.5 |
| CHAIN STAY HORIZONTAL (in mm) | 400 | 400 | 400 | 400 | 400 |
| BB DROP (in mm) | 77 | 74.5 | 72 | 72 | 69.5 |
| BB HEIGHT (@30 mm tyre) | 270.5 | 273 | 275.5 | 275.5 | 278 |
| SEAT TUBE ANGLE (in °) | 75,25 | 74,75 | 74,25 | 73,75 | 73,25 |
| FORK RAKE (in mm) | 47 | 47 | 47 | 47 | 47 |
| FORK LENGTH (in mm) | 375 | 375 | 375 | 375 | 375 |
| HEAD TUBE ANGLE (in °) | 70,25 | 70,75 | 71,25 | 71,50 | 71,75 |
| WHEEL BASE (in mm) | 975,6 | 993,9 | 1011,4 | 1030,4 | 1047,4 |
| REACH (in mm) | 371,5 | 387,7 | 401,1 | 415,5 | 428 |
| STACK (in mm) | 505.2 | 523,7 | 543,9 | 566,4 | 586,4 |
| BB TO FORK CENTRE (in mm) | 580,8 | 598,6 | 615,6 | 634,5 | 651,1 |
| RIDER HEIGHT (imperial) | 5'3" - 5'6" | 5'5" - 5'9" | 5'8" - 6'1" | 6' - 6'4" | 6'3" - 6'7" |
| RIDER HEIGHT (metric) | 160 - 167 | 165 - 175 | 173 - 184 | 183 - 193 | 190 - 201 |
