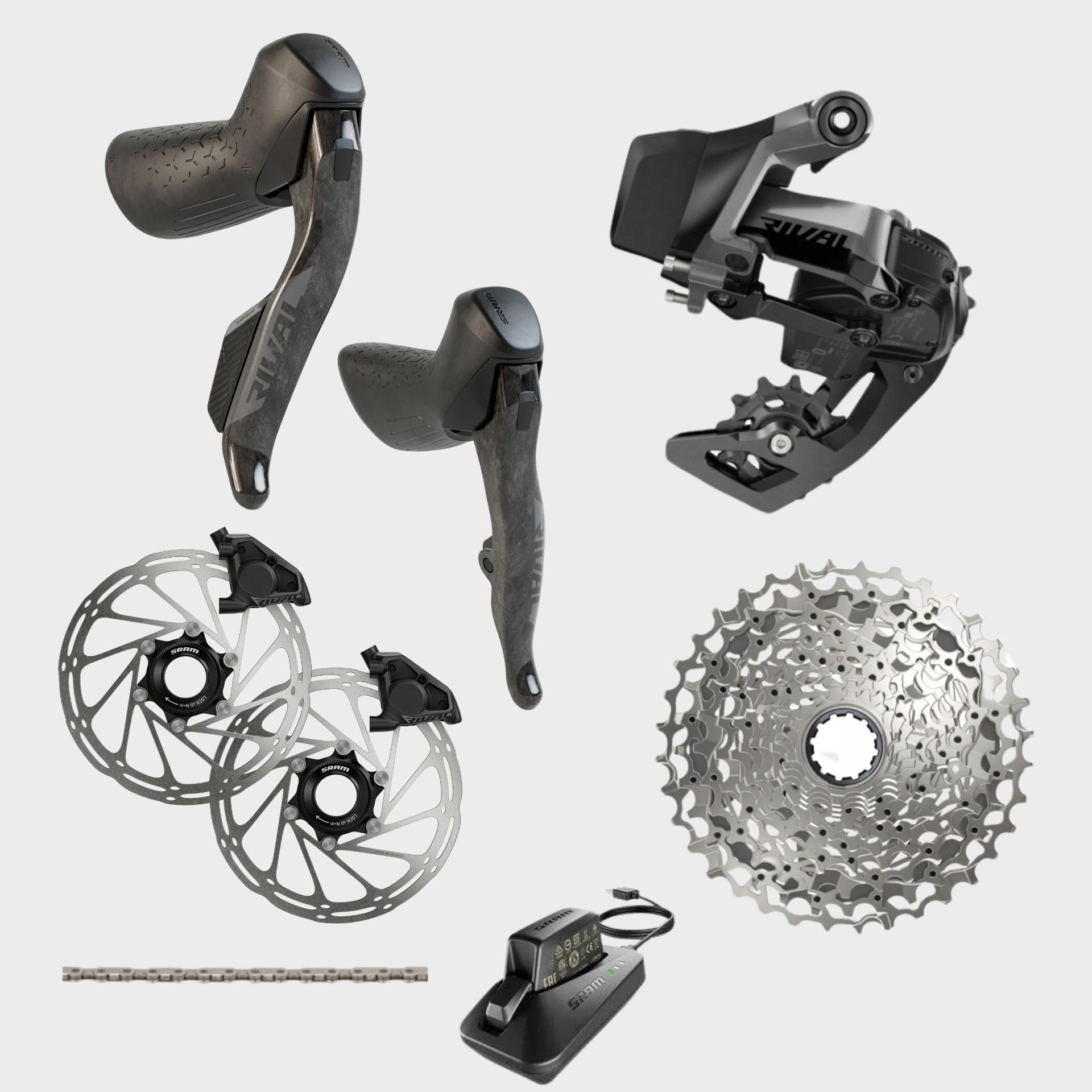

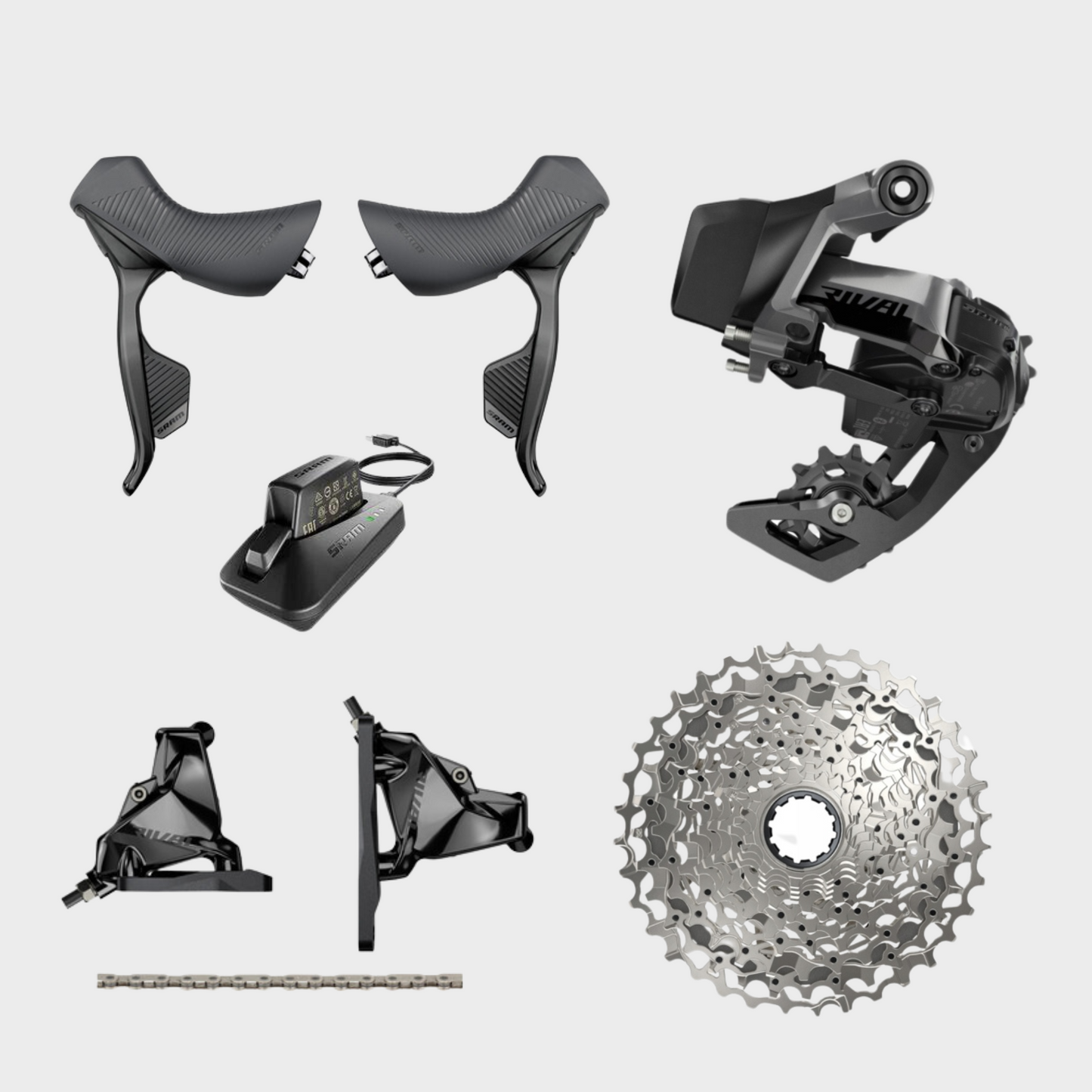

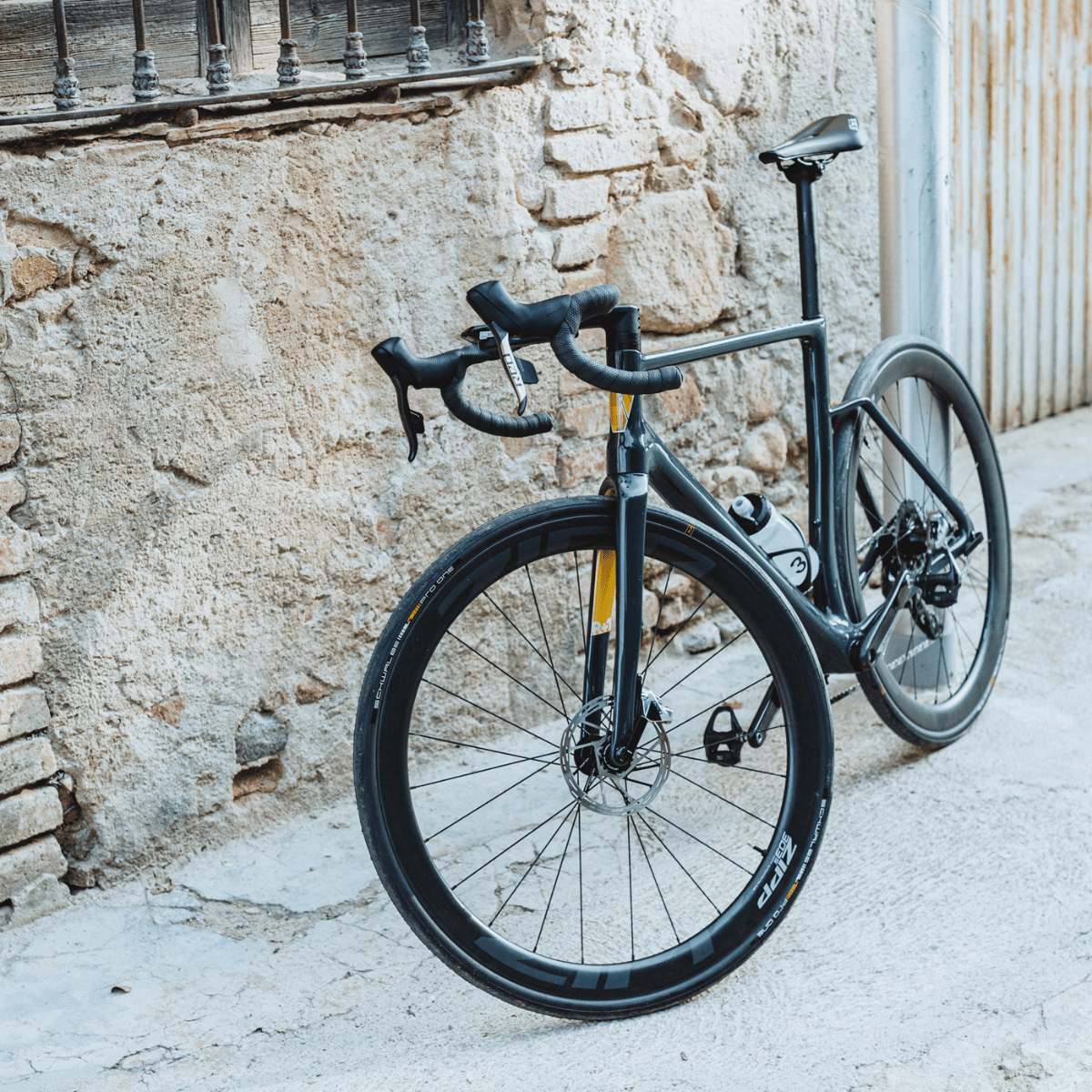

R+1 Alto SRAM Rival e-Tap AXS 12 speed
R+1 Alto SRAM Rival e-Tap AXS 12 speed
Couldn't load pickup availability
Size or dimensions
Size or dimensions
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| SEAT TUBE (in mm) | 420 | 455 | 490 | 520 | 550 |
| TOP TUBE HORIZONTAL (in mm) | 505 | 530 | 555 | 580 | 605 |
| HEAD TUBE (in mm) | 100 | 120 | 142.5 | 165 | 187.5 |
| CHAIN STAY HORIZONTAL (in mm) | 400 | 400 | 400 | 400 | 400 |
| BB DROP (in mm) | 77 | 74.5 | 72 | 72 | 69.5 |
| BB HEIGHT (@30 mm tyre) | 270.5 | 273 | 275.5 | 275.5 | 278 |
| SEAT TUBE ANGLE (in °) | 75,25 | 74,75 | 74,25 | 73,75 | 73,25 |
| FORK RAKE (in mm) | 47 | 47 | 47 | 47 | 47 |
| FORK LENGTH (in mm) | 375 | 375 | 375 | 375 | 375 |
| HEAD TUBE ANGLE (in °) | 70,25 | 70,75 | 71,25 | 71,50 | 71,75 |
| WHEEL BASE (in mm) | 975,6 | 993,9 | 1011,4 | 1030,4 | 1047,4 |
| REACH (in mm) | 371,5 | 387,7 | 401,1 | 415,5 | 428 |
| STACK (in mm) | 505.2 | 523,7 | 543,9 | 566,4 | 586,4 |
| BB TO FORK CENTRE (in mm) | 580,8 | 598,6 | 615,6 | 634,5 | 651,1 |
| RIDER HEIGHT (imperial) | 5'3" - 5'6" | 5'5" - 5'9" | 5'8" - 6'1" | 6' - 6'4" | 6'3" - 6'7" |
| RIDER HEIGHT (metric) | 160 - 167 | 165 - 175 | 173 - 184 | 183 - 193 | 190 - 201 |
Shipping & Returns
Shipping & Returns
UK Deliveries
All UK deliveries are sent by express courier, usually on a next working day delivery. In stock parts, accessories and clothing orders placed before 1pm we’ll aim to dispatch the same day. All deliveries of bikes are made to order, so please allow up to 3 working days for build time before dispatch.
Built Bikes
Built bikes are shipped in large box, 95% assembled. When you receive
the box all you’ll need to do is insert the wheels, attach your pedals
and set your saddle height. If you’ve provided your bike fit data to us
we will have marked your saddle height on the seat post for you. Torque
settings, manuals and first steps videos are all available in our Vielo
owners area. All deliveries will be dispatched with tracking numbers
emailed to you.
Bikes are sent via Next Working day Courier. Some deliveries in areas
such as the highlands or islands will require additional time for
deliveries. 99.9% of our deliveries arrive on time, however sometimes
delays in transit happen. If your order is time critical please let us
know in advance and we’ll do all we can.
International Pricing
International Pricing
At Vielo.cc we display all our prices in GBP £ including UK VAT at 20%.
International prices vary for each country due to import duties, tariffs, currency differences and local taxes. For pricing in your local currency,
including having the bike built to your desired specification, please contact your local dealer or us directly at info@vielosports.com
Read more here
Warranty
Warranty
Vielo Frames come with a 5 Year warranty when registered at Vielo.cc
We also offer a Crash replacement policy to customers to help them get back on the road or gravel in the event of an accident
