On-road bike performance.
Off-road capabilities.
Liberate your ride.
The Vielo V+1 has been a long time in the making - a product of ideas, theories and extensive know-how gained from thirty years working with some of the world’s most coveted ultra-performance cycle brands.Designed for British cyclist, the V+1 has not suffered compromises to meet the demands of global markets. Instead we have single-mindedly engineered the V+1 for riding on rough British roads plus off-road gravel tracks.We think of it as a go anywhere speed machine. But in reality, it’s much more than that.The V+1 is an exercise in painstaking attention to detail. A quest to find the perfect combination of compliance, stiffness and acceleration that helps British riders go where they want, as fast as they want.

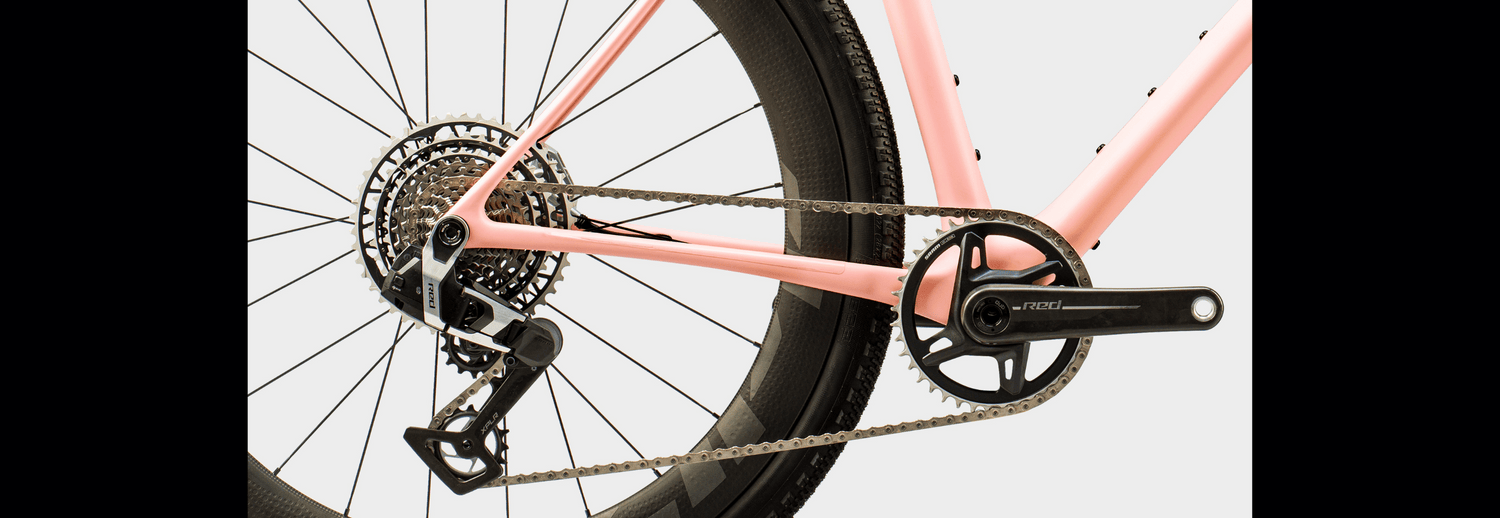

- Chain ring and crank: SRAM Force 1x 42Tooth
- Rotors: SRAM Centre line R140mm F160mm (or up to180mm)
- Brake lever / Shifter L: SRAM Force
- Brake lever / Shifter R: SRAM Force
- Brake caliper R SRAM Force post mount
- Brake caliper F SRAM Force post mount
- Rear Mech: SRAM Force 11sp Long cage
- Chain: KMC DLC Black diamond 11sp
- Cassette: SRAM X01 XG 1195 10/42
- Saddle: Fabric Scoop Shallow Titanium Rail
- Bottom Bracket: Token Press fit 30

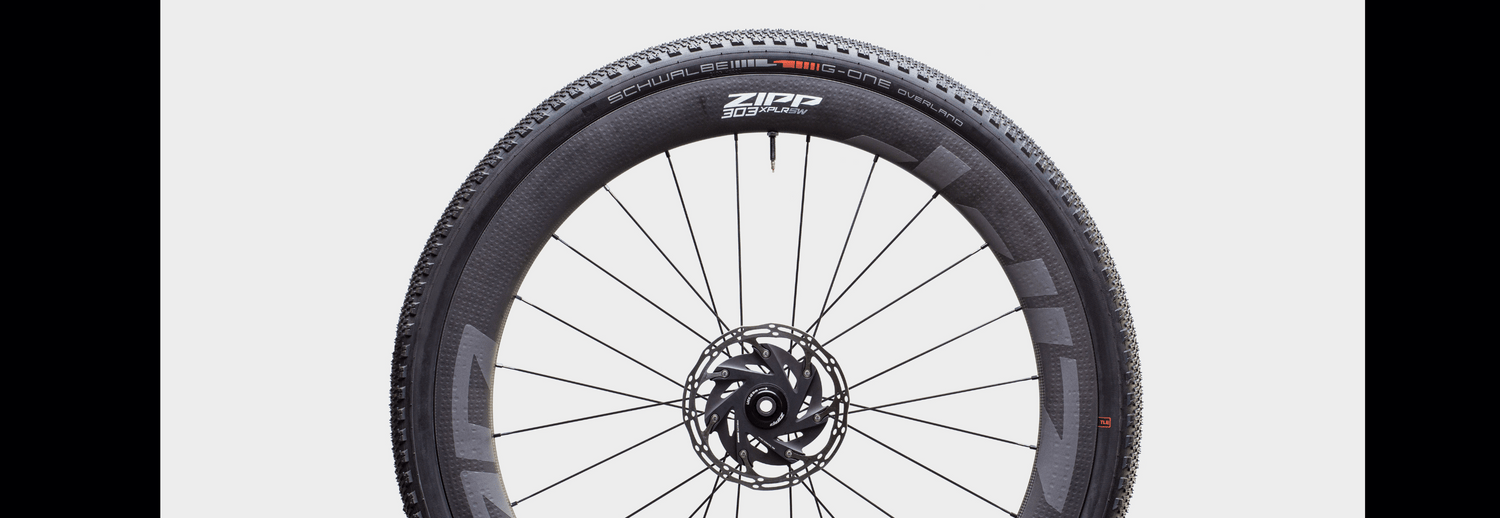

- Wheels: DT Swiss CR1600
- Tyres: Schwalbe G-One Speed tubeless
- Bar Tape: Fabric Silicon
- Complete SRAM Force 1 Build kit
- Vielo Carbon handlebar with 8 degree flair
- Vielo Alloy stem
| | XS | S | M | L | XL |
---|
1 | SEAT TUBE | 415 | 450 | 482,5 | 512,5 | 540 |
---|
2 | TOP TUBE HORIZONTAL | 505 | 527,5 | 545 | 570 | 592,5 |
---|
3 | HEAD TUBE | 110 | 130 | 150 | 170 | 190 |
---|
4 | CHAIN STAY HORIZONTAL | 422,5 | 422,5 | 422,5 | 425 | 425 |
---|
5 | BB DROP | 55 | 55 | 52,5 | 52,5 | 52,5 |
---|
6 | SEAT TUBE ANGLE | 74,5 | 74 | 73,5 | 73 | 72,5 |
---|
7 | FORK RAKE | 48 | 48 | 48 | 48 | 48 |
---|
8 | FORK LENGTH | 400 | 400 | 400 | 400 | 400 |
---|
9 | HEAD TUBE ANGLE | 70 | 70,5 | 71 | 71,5 | 72 |
---|
10 | WHEEL BASE | 1003,2 | 1017,5 | 1026,9 | 1044,6 | 1056,6 |
---|
11 | REACH | 362,1 | 373,8 | 380,8 | 394,2 | 404,6 |
---|
12 | STACK | 515,1 | 535,9 | 554,2 | 575,1 | 596,0 |
---|
| RIDER HEIGHT | 5’3” ▾ 5’6” | 5’5” ▾ 5’9” | 5’8” ▾ 6’1” | 6’ ▾ 6’4” | 6’3” ▾ 6’7” |
---|
*BB Height is based on 700c x 42mm tyre. BB Height will vary with tyre size.
V+1 UD frameset SRP £2,999
V+1 Force Edition with Carbon seat post SRP £5299
V+1 Force Edition with Dropper seat post SRP £5499
- Chain ring and crank: SRAM Rival 1x 42Tooth
- Rotors: SRAM Centre line R140mm F160mm (or up to180mm)
- Brake lever / Shifter L: SRAM Rival
- Brake lever / Shifter R: SRAM Rival
- Brake caliper R SRAM Rival post mount
- Brake caliper F SRAM Rival post mount
- Rear Mech: SRAM Rival 11sp Long cage
- Chain: SRAM PC1130
- Cassette: SRAM XG 1150 10/42
- Saddle: Fabric Scoop Shallow Cromo Rail
- Bottom Bracket: SRAM GXP
- Wheels: DT Swiss G1800
- Tyres: WTB Riddler 700 x 37
- Bar Tape: Fabric Silicon Black
- Complete SRAM Rival 1 Build kit
- Vielo Carbon handlebar with 8 degree flair
- Vielo Alloy stem
| | XS | S | M | L | XL |
---|
1 | SEAT TUBE | 415 | 450 | 482,5 | 512,5 | 540 |
---|
2 | TOP TUBE HORIZONTAL | 505 | 527,5 | 545 | 570 | 592,5 |
---|
3 | HEAD TUBE | 110 | 130 | 150 | 170 | 190 |
---|
4 | CHAIN STAY HORIZONTAL | 422,5 | 422,5 | 422,5 | 425 | 425 |
---|
5 | BB DROP | 55 | 55 | 52,5 | 52,5 | 52,5 |
---|
6 | SEAT TUBE ANGLE | 74,5 | 74 | 73,5 | 73 | 72,5 |
---|
7 | FORK RAKE | 48 | 48 | 48 | 48 | 48 |
---|
8 | FORK LENGTH | 400 | 400 | 400 | 400 | 400 |
---|
9 | HEAD TUBE ANGLE | 70 | 70,5 | 71 | 71,5 | 72 |
---|
10 | WHEEL BASE | 1003,2 | 1017,5 | 1026,9 | 1044,6 | 1056,6 |
---|
11 | REACH | 362,1 | 373,8 | 380,8 | 394,2 | 404,6 |
---|
12 | STACK | 515,1 | 535,9 | 554,2 | 575,1 | 596,0 |
---|
| RIDER HEIGHT | 5’3” ▾ 5’6” | 5’5” ▾ 5’9” | 5’8” ▾ 6’1” | 6’ ▾ 6’4” | 6’3” ▾ 6’7” |
---|
*BB Height is based on 700c x 42mm tyre. BB Height will vary with tyre size.
V+1 UDG frameset SRP £2,399
V+1 Rival Edition with Carbon seat post SRP £3499
V+1 Rival Edition with Dropper seat post SRP £3699
The V+1 simply glides over rough patches of broken tarmac. Nothing fazes it. Potholes, cracks, cattle grids, sunken drain covers – it handles them all so well.
Live Ride Review
“I‘ve been riding road bikes where they shouldn‘t be ridden since the 80‘s. I’ve been testing professionally for over twenty years. I know when something is really special and the V+1 is certainly that.”
Live Ride Review
“I‘ve been riding road bikes where they shouldn‘t be ridden since the 80‘s. I’ve been testing professionally for over twenty years. I know when something is really special and the V+1 is certainly that.”
Live Ride Review
“I‘ve been riding road bikes where they shouldn‘t be ridden since the 80‘s. I’ve been testing professionally for over twenty years. I know when something is really special and the V+1 is certainly that.”
Live Ride Review
“I‘ve been riding road bikes where they shouldn‘t be ridden since the 80‘s. I’ve been testing professionally for over twenty years. I know when something is really special and the V+1 is certainly that.”
1 bike with 2 wheel size options. V+1 has enough clearance for 700x42mm or 650b x 2.00”
