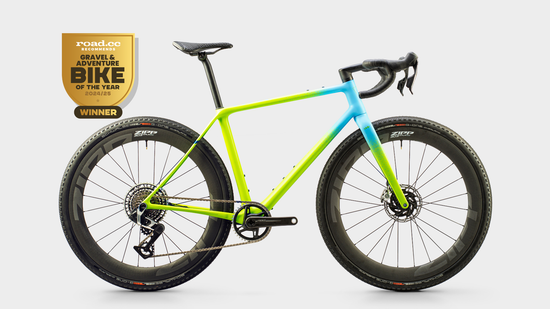

Vielo V+1 Gravel Bike Specifications Vielo V+1 Gravel Bike Specifications

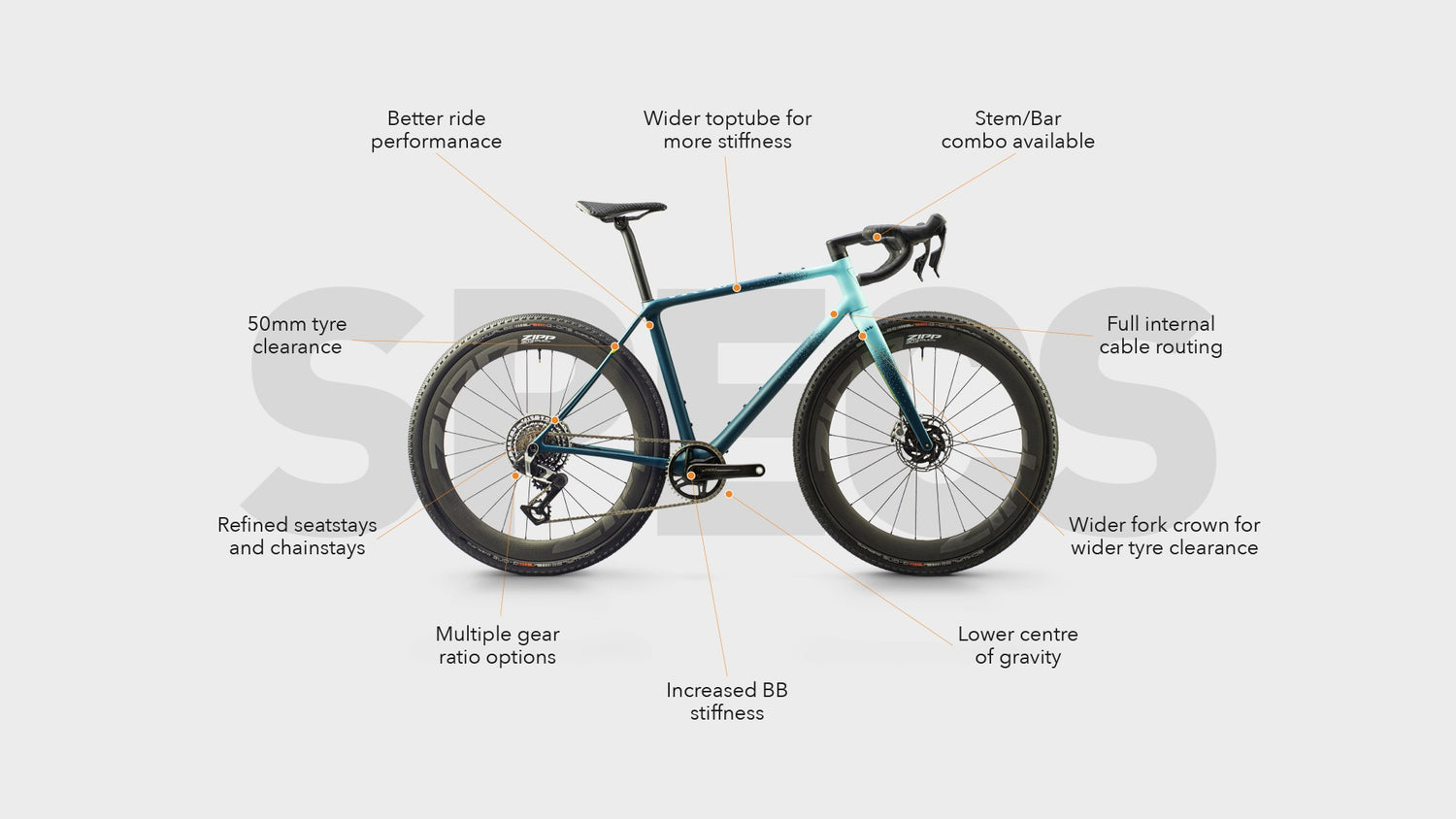

Turning something great into something epic is no easy feat. But that’s exactly what our obsessed engineers have been up to in the pursuit of making the V+1 Gen 2 the best version possible

CHPT3 Vielo V+1 Dirt Gravel Bike Specifications UK
  • CHPT3 V+1Campagnolo Ekar 13 speed
  • FrameFull Carbon Fibre 1100g (semi internal hose routing)
  • ForkFull Carbon Fibre (semi internal hose routing)
  • ColourCHPT3 Vielo
  • HandlebarVielo Carbon Bar combo. Bar width 40cm, 42cm, 44cm
  • StemVielo Carbon Bar combo. Stem length 90, 100, 110mm
  • HeadsetVielo by Token
  • WheelsCampagnolo Shamal Carbon
  • TyresWTB Riddler 700 x 45c All Black
  • CranksetCampagnolo Ekar 1x42T
  • BBCampagnolo EVO
  • ChainCampagnolo 13 speed
  • Rear MechCampagnolo Ekar 13 Mechanical
  • CassetteCampagnolo 13 Speed 9-42
  • ShiftersCampagnolo Ekar Ergopower 1x13 Hydraulic disc
  • RotorsCampagnolo Ekar 160 front, 140 rear
  • SaddleFixik Tempo Argo R5 Gravel
  • Seat PostVielo Carbon 30.9mm x 400mm
  • PriceFrom £7,000
Buy Now
Vielo V+1 Gravel Bike Specifications UK
  • V+1 AltoSRAM Eagle e-Tap AXS 12 speed
  • FrameFull Carbon Fibre 880g (semi internal hose routing)
  • ForkFull Carbon Fibre (semi internal hose routing)
  • ColourRock Salt with Blue Stone / Blue Stone with Rock Salt
  • HandlebarVielo Carbon Bar. Bar width 38cm, 40cm, 42cm, 44cm
  • StemVielo Forged Alloy. Stem length 80, 90, 100, 110mm
  • HeadsetVielo by Token
  • WheelsDT Swiss GR1600 700c
  • TyresWTB Riddler 700 x 45c TCS
  • CranksetSRAM Force crank arm with Vielo CNC machined chain ring
  • BBToken Ninja EVO
  • ChainSRAM Eagle Black
  • Rear MechSRAM Eagle XX1 E-tap 12 speed
  • CassetteSRAM Eagle XG-1275 Black 10 - 50
  • ShiftersSRAM Force E-tap 1 x 12 speed Hyd set
  • RotorsSRAM Centre Line 160 front, 140 rear
  • SaddleFabric Carbon Scoop shallow
  • Seat PostVielo Carbon 30.9mm x 400mm
  • PriceFrom £6,299
Buy Now
Vielo V+1 Gravel Bike Specifications UK
  • V+1 Alto Shimano GRX Di2 11 speed
  • FrameFull Carbon Fibre 880g (semi internal hose routing)
  • ForkFull Carbon Fibre (semi internal hose routing)
  • ColourRock Salt with Blue Stone / Blue Stone with Rock Salt
  • HandlebarVielo Carbon Bar. Bar width 38cm, 40cm, 42cm, 44cm
  • StemVielo Forged Alloy. Stem length 80, 90, 100, 110mm
  • HeadsetVielo by Token
  • WheelsDT Swiss GR1600 700c
  • TyresWTB Riddler 700 x 45c TCS
  • CranksetVielo Forged Alloy Crank with Vielo CNC Machined chain ring
  • BBToken Ninja EVO
  • ChainShimano 11 speed
  • Rear MechShimano GRX Di2
  • CassetteShimano 11-42
  • ShiftersShimano GRX Di2
  • RotorsShimano 160 front, 140 rear
  • SaddleFabric Titanium Scoop shallow
  • Seat PostVielo Carbon 30.9mm x 400mm
  • PriceFrom £5,999
Buy Now
Vielo V+1 Alto Gravel Bike Specifications UK
  • V+1 AltoSRAM Rival XPLR e-Tap AXS 12 speed
  • FrameFull Carbon Fibre 880g (semi internal hose routing)
  • ForkFull Carbon Fibre (semi internal hose routing)
  • ColourRock Salt with Blue Stone / Blue Stone with Rock Salt
  • HandlebarVielo Carbon Bar-Stem unit. Bar width 40cm, 42cm, 44cm
  • StemVielo Carbon Bar-Stem unit. Stem length 90, 100, 110, 120mm
  • HeadsetVielo by Token
  • WheelsDT Swiss GR1600 700c
  • TyresWTB Riddler 700 x 45c TCS
  • CranksetVielo Alloy crank arm with Vielo CNC machined chain ring
  • BBToken Ninja EVO
  • ChainSRAM 12 speed
  • Rear MechSRAM Rival XPLR e-Tap AXS 12 speed for 10-44
  • CassetteSRAM Rival XPLR 10-44
  • ShiftersSRAM Rival e-tap AXS shifters / levers
  • RotorsSRAM Paceline 140 rear, 160 front
  • SaddleFabric Scoop Chromo rail
  • Seat PostVielo Carbon 30.9mm x 400mm
  • PriceFrom £5,649
Buy Now
Vielo V+1 Gravel Bike Specifications UK
  • V+1 StratoCampagnolo Ekar 13 speed
  • FrameFull Carbon Fibre 1100g (semi internal hose routing)
  • ForkFull Carbon Fibre (semi internal hose routing)
  • ColourFrost Green with Plum / Plum with Frost Green
  • HandlebarVielo Carbon Bar combo. Bar width 40cm, 42cm, 44cm
  • StemVielo Carbon Bar combo. Stem length 90, 100, 110mm
  • HeadsetVielo by Token
  • WheelsDT Swiss GR1600 700c
  • TyresWTB Riddler 700 x 45c TCS
  • CranksetVielo Forged Alloy Crank with Vielo CNC Machined chain ring
  • BBToken Ninja EVO
  • ChainCampagnolo 13 speed
  • Rear MechCampagnolo Ekar
  • CassetteCampagnolo Ekar 9-42
  • ShiftersCampagnolo Ekar
  • RotorsCampagnolo 160 front, 140 rear
  • SaddleFabric Cromo Scoop shallow
  • Seat PostVielo Carbon 30.9mm x 400mm
  • PriceFrom £5,699
Buy Now
Vielo V+1 Strato Gravel Bike Specifications UK
  • V+1 StratoSRAM Rival XPLR e-Tap AXS 12 speed
  • FrameFull Carbon Fibre 1100g (semi internal hose routing)
  • ForkFull Carbon Fibre (semi internal hose routing)
  • ColourFrost Green with Plum / Plum with Frost Green
  • HandlebarZipp Service Course XPLR Alloy 40, 42, 44cm
  • StemVielo Alloy Stem length 90, 100, 110mm
  • HeadsetVielo by Token
  • WheelsDT Swiss G1800
  • TyresWTB Riddler 700 x 45c All Black
  • CranksetVielo Alloy crank arm with Vielo CNC machined chain ring
  • BBToken Ninja EVO
  • ChainSRAM 12 speed
  • Rear MechSRAM Rival XPLR e-Tap AXS 12 speed for 10-44
  • CassetteSRAM Rival XPLR 10-44
  • ShiftersSRAM Rival e-tap AXS shifters / levers
  • RotorsSRAM Paceline 140 rear, 160 front
  • SaddleFabric Scoop Chromo rail
  • Seat PostVielo Carbon 30.9mm x 400mm
  • PriceFrom £4,999
Buy Now
Vielo V+1 Gravel Bike Specifications UK
  • V+1 StratoShimano GRX Mechanical
  • FrameFull Carbon Fibre 1100g (semi internal hose routing)
  • ForkFull Carbon Fibre (semi internal hose routing)
  • ColourFrost Green with plum / Plum with Frost Green
  • HandlebarVielo Carbon Bar. Bar width 38cm, 40cm, 42cm, 44cm
  • StemVielo Forged Alloy. Stem length 80, 90, 100, 110mm
  • HeadsetVielo by Token
  • WheelsDT Swiss GR1800 700c
  • TyresWTB Riddler 700 x 45c TCS
  • CranksetVielo Forged Alloy Crank with Vielo CNC Machined chain ring
  • BBToken Ninja EVO
  • ChainShimano 11 speed
  • Rear MechShimano GRX
  • CassetteShimano 11-42
  • ShiftersShimano GRX
  • RotorsShimano 160 front, 140 rear
  • SaddleFabric Cromo Scoop shallow
  • Seat PostVielo Carbon 30.9mm x 400mm
  • PriceFrom £4,799
Buy Now
Vielo V+1 Gravel Bike Alto Frameset Bikes Specifications UK
  • V+1Alto Frameset
  • FrameFull carbon Fibre 880g (semi internal cable routing)
  • ForkFull carbon Fibre (semi internal cable routing)
  • ColourRock salt with Blue stone
  • HeadsetVielo by Token
  • Fork ExpanderVielo by Token Push-n-turn
  • Seat PostVielo Carbon Fibre 400 x 30.9
  • AxlesVielo A2T alloy Thru axle with QR. 142x12 rear, 100x12 front
  • Mech HangerVielo CNC machined for A2T thru axle
  • Small PartsIncl bottle cage bolts, anti rattle foam
  • Price£3,899
  • Frame Requires
  • 1x CranksetVielo Alloy crank arms with Vielo CNC machined alloy chain ring
Buy Now
Vielo V+1 Gravel Bike Alto Frameset Bikes Specifications UK
  • V+1Alto Frameset
  • FrameFull carbon Fibre 880g (semi internal cable routing)
  • ForkFull carbon Fibre (semi internal cable routing)
  • ColourBlue Stone with Rock Salt
  • HeadsetVielo by Token
  • Fork ExpanderVielo by Token Push-n-turn
  • Seat PostVielo Carbon Fibre 400 x 30.9
  • AxlesVielo A2T alloy Thru axle with QR. 142x12 rear, 100x12 front
  • Mech HangerVielo CNC machined for A2T thru axle
  • Small PartsIncl bottle cage bolts, anti rattle foam
  • Price£3,899
  • Frame Requires
  • 1x CranksetVielo Alloy crank arms with Vielo CNC machined alloy chain ring
Buy Now
Vielo V+1 Gravel Bike Specifications UK
  • V+1Strato Frameset
  • FrameFull carbon Fibre 1100g (semi internal cable routing)
  • ForkFull carbon Fibre (semi internal cable routing)
  • ColourFrost Green with Plum
  • HeadsetVielo by Token
  • Fork ExpanderVielo by Token Push-n-turn
  • Seat PostVielo Carbon Fibre 400 x 30.9
  • AxlesVielo A2T alloy Thru axle with QR. 142x12 rear, 100x12 front
  • Mech HangerVielo CNC machined for A2T thru axle
  • Small PartsIncl bottle cage bolts, anti rattle foam
  • Price£3,399
  • Frame Requires
  • 1x CranksetVielo Alloy crank arms with Vielo CNC machined alloy chain ring
Buy Now
Vielo V+1 Gravel Bike Alto Frameset Bikes Specifications UK
  • V+1Strato Frameset
  • FrameFull carbon Fibre 1100g (semi internal cable routing)
  • ForkFull carbon Fibre (semi internal cable routing)
  • ColourPlum with Frost Green
  • HeadsetVielo by Token
  • Fork ExpanderVielo by Token Push-n-turn
  • Seat PostVielo Carbon Fibre 400 x 30.9
  • AxlesVielo A2T alloy Thru axle with QR. 142x12 rear, 100x12 front
  • Mech HangerVielo CNC machined for A2T thru axle
  • Small PartsIncl bottle cage bolts, anti rattle foam
  • Price£3,399
  • Frame Requires
  • 1x CranksetVielo Alloy crank arms with Vielo CNC machined alloy chain ring
Buy Now
Vielo V+1 Gravel Bike

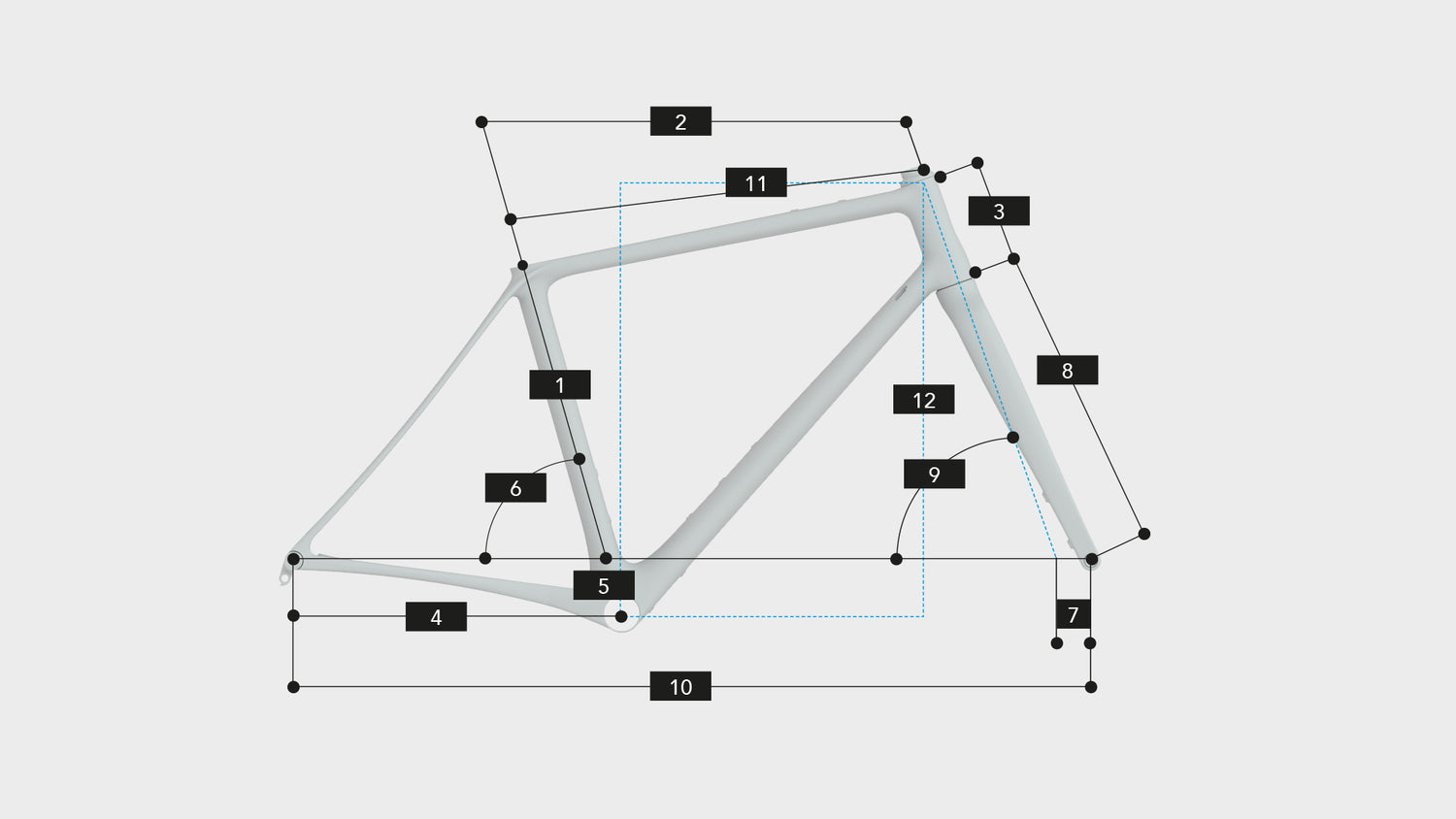

Geometry

XS S M L XL
1 SEAT TUBE (in mm) 410 445 480 515 550
2 TOP TUBE HORIZONTAL (in mm) 505 530 555 580 605
3 HEAD TUBE (in mm) 100 122.5 145 165 187.5
4 CHAIN STAY HORIZONTAL (in mm) 435 435 435 435 435
5 BB DROP (in mm) 72.5 72.5 70 70 70
6 SEAT TUBE ANGLE (in °) 75.25 74.75 74.25 73.75 73.25
7 FORK RAKE (in mm) 48 48 48 48 48
8 FORK LENGTH (in mm) 407.5 407.5 407.5 407.5 407.5
9 HEAD TUBE ANGLE (in °) 70 70.25 70.50 70.75 71
10 WHEEL BASE (in mm) 1017.6 1038.7 1056.8 1075.6 1092.7
11 REACH (in mm) 364.9 380 393.1 408 419.5
12 STACK (in mm) 530.3 552.2 572.1 592.2 614.3
13 RIDER HEIGHT (imperial) 5'3" - 5'6" 5'5" - 5'9" 5'8" - 6'1" 6' - 6'4" 6'3" - 6'7"
14 RIDER HEIGHT (metric) 160 - 167 165 - 175 173 - 184 183 - 193 190 - 201
