Vielo V+1 Strato - SRAM Force AXS D1 Promo

Vielo V+1 Strato - SRAM Force AXS D1 Promo

Regular price £3,999.00 GBP
Regular price £4,899.00 GBP Sale price £3,999.00 GBP
Sale Sold out
Shipping calculated at checkout.

Vielo V+1 Strato - SRAM Force AXS D1 Promo

This custom build Vielo V+1 is an Online exclusive offer. Our Web Exclusive offers are brand new bikes and built to order. Delivery times are usually 3-5 working days.

This is a stock limited offer

We have an amazing opportunity to build a few Force AXS XPLR D1 bikes at a superb offer. As SRAM will be delivering the facelift force groupset to us in a few weeks we're making some room on the shleves at Vielo HQ with this Force D1 offer.

Total Price £3999

Cycle to work scheme - Yes this is available via Cycle to Work vouchers.

V12 Finance - We now offer V12 finance on all our bikes. Finance is subject to status. You can see an example of purchasing this bike on V12 Finance here;

V12 Finance Example;

  • Cash Price £3999
  • Deposit £400
  • Balance to Finance £3599
  • 24 Monthly payments of £149.95

Finance is subject to status.

If you would like to order the bike via either Cycle to work scheme or V12 finance please Email us here

About this bike.

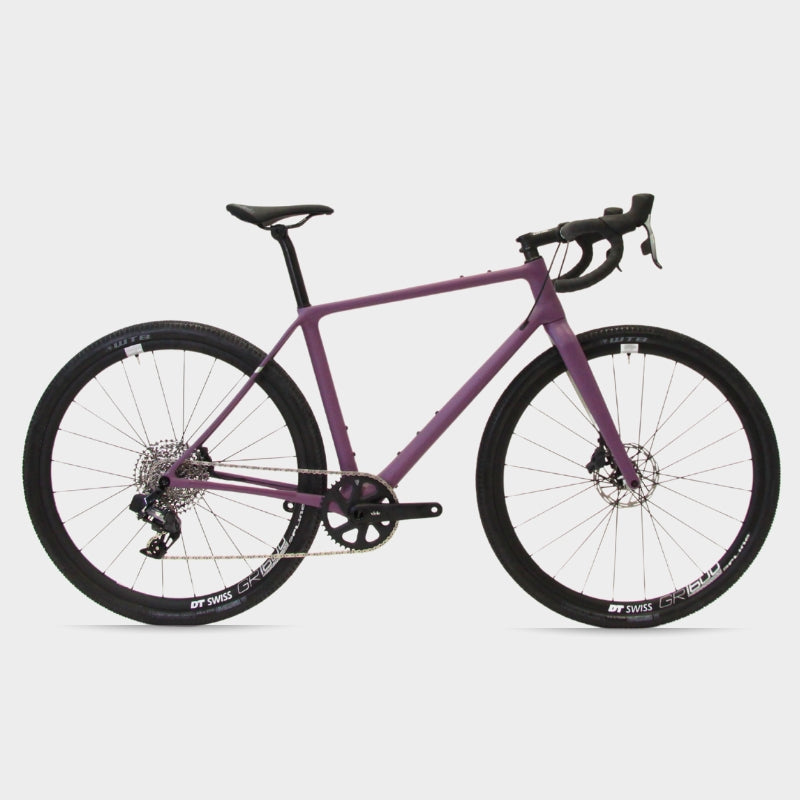

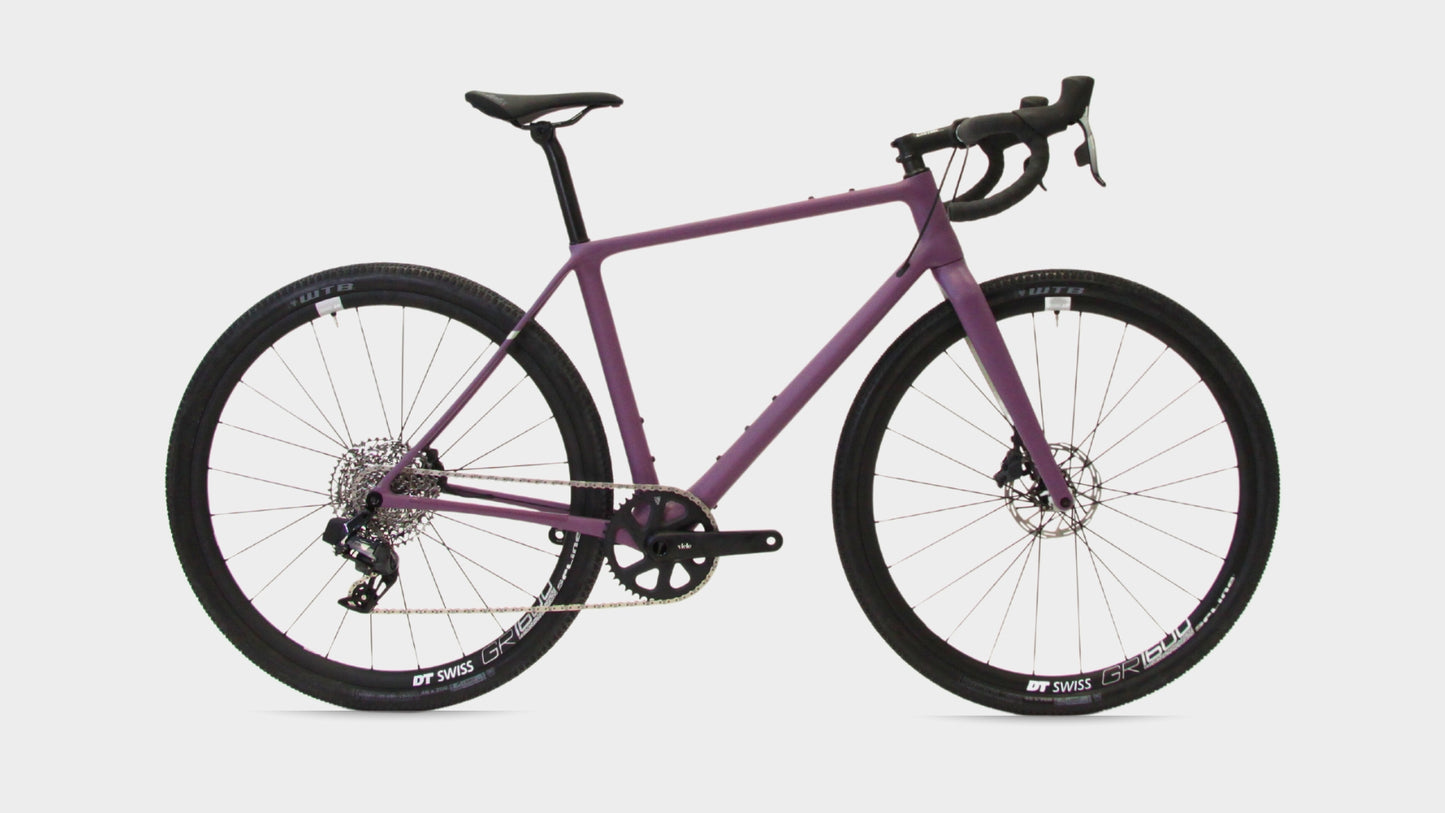

This Web exclusive is for a Vielo V+1 Strato frame in Plum built with SRAM Force D1 12 speed electronic wireless groupset and DT Swiss GR1600 alloy wheels.

Weight: Size Medium 9.1kg* (Frame Size and spec changes will vary the weight slightly)

Your bike will be built to order, once your order is received we'll contact you to confirm the estimated delivery time.

 Full specification:

Headset bearings Vielo / Token Stainless double seal
Fork expander with Vielo cap Vielo
Wheels DT Swiss GR1600 Alloy
A2T Token Alloy axles Vielo A2T
Rotors x 2 SRAM Paceline 140 rear, 160 front

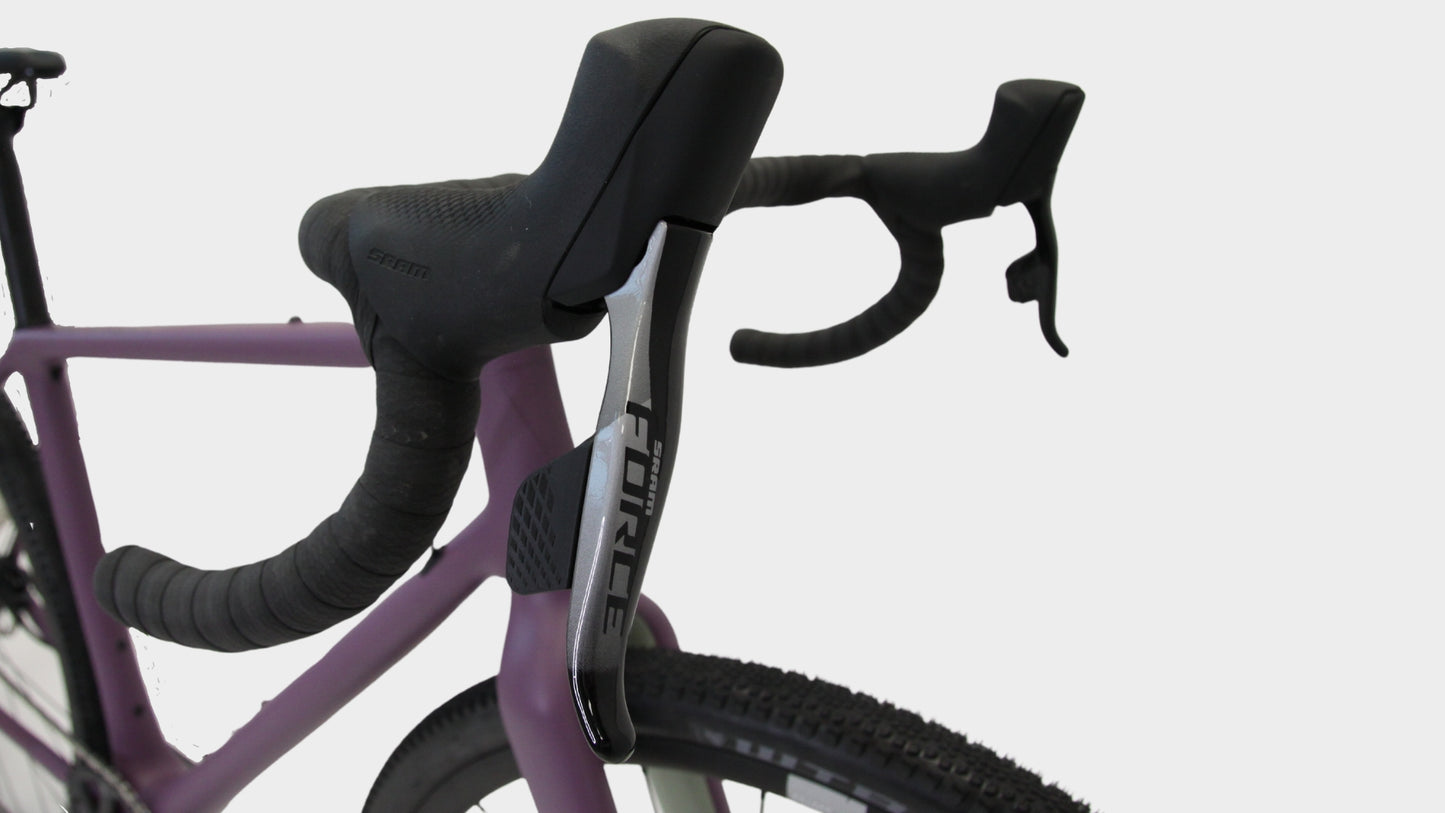

Brake lever / Shifters  SRAM Force D1 eTap AXS XPLR

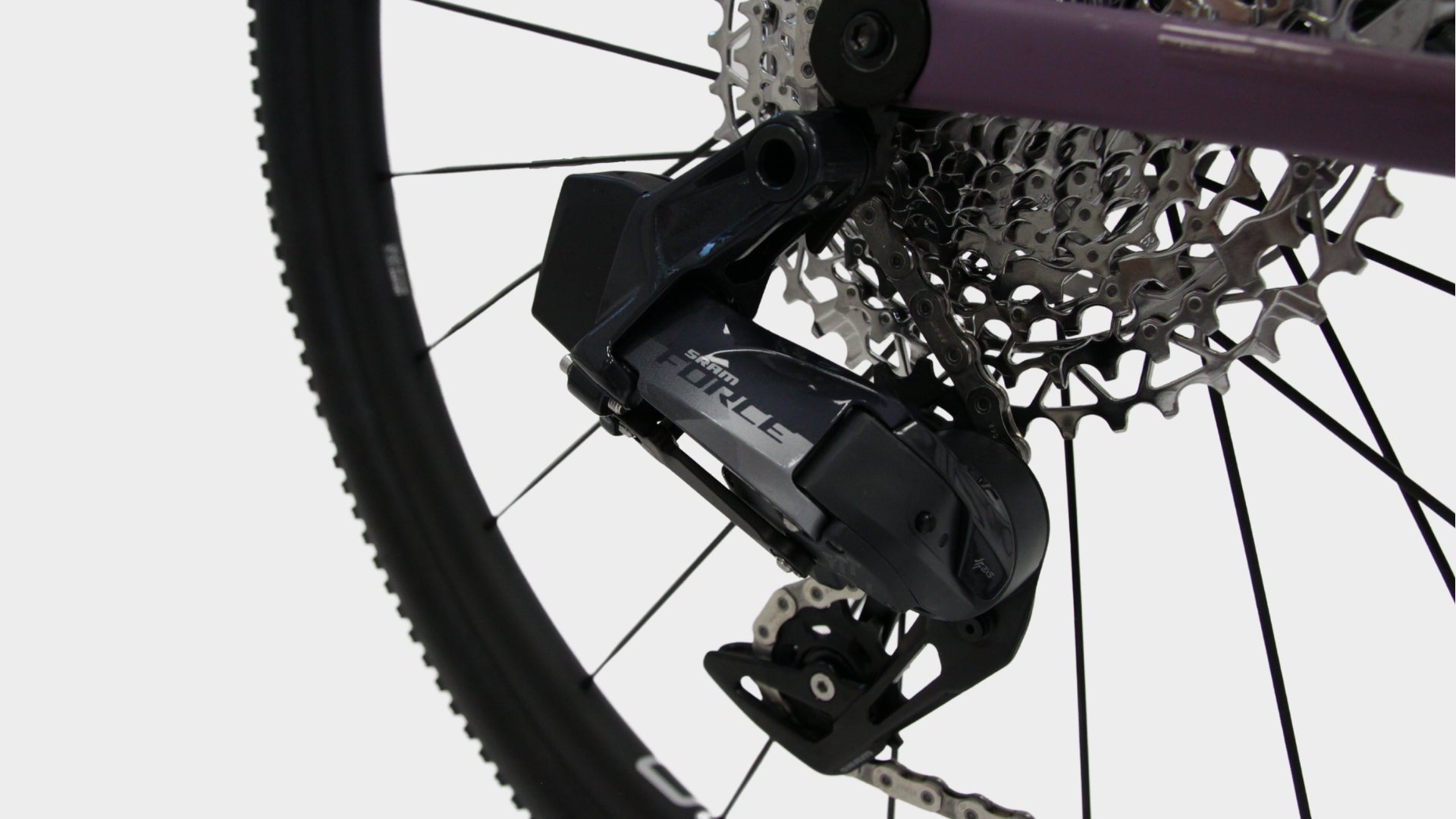

Rear Mech SRAM Force D1 eTap AXS XPLR
Brake calipers


Chain ring and cranks

Vielo Alloy crank arms with Vielo Alloy chain ring

Chain SRAM Force 12 Speed Flat top

SRAM XG-1251 XPLR wide 10-44

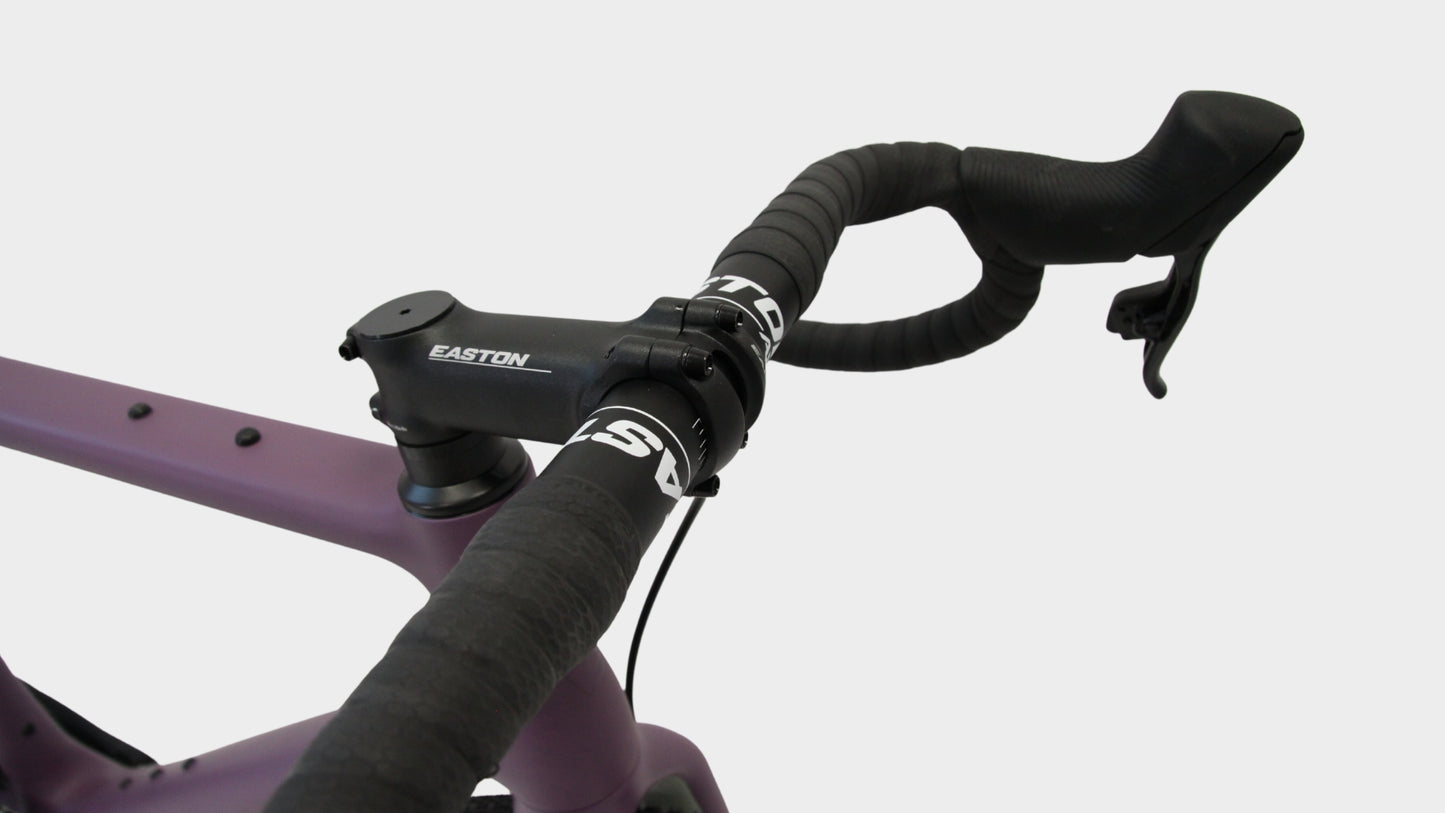

Easton Alloy bar

Stem Easton Alloy stem
Seat post Vielo Carbon seat post 30.9mm
Saddle Selle Italia SLR Novus Boost Evo X-Cross Manganese rail saddle
Bottom Bracket Token Ninja
Tyres (tubeless)

WTB Riddler 700x45c Tyres +  Orange Seal Tubeless

Bar Tape Vielo Black


Size or dimensions

SEAT TUBE (in mm) 410 445 480 515 550
TOP TUBE HORIZONTAL (in mm) 505 530 555 580 605
HEAD TUBE (in mm) 100 122.5 145 165 187.5
CHAIN STAY HORIZONTAL (in mm) 435 435 435 435 435
BB DROP (in mm) 72.5 72.5 70 70 70
SEAT TUBE ANGLE (in °) 75,25 74,75 74,25 73,75 73,25
FORK RAKE (in mm) 48 48 48 48 48
FORK LENGTH (in mm) 407.5 407.5 407.5 407.5 407.5
HEAD TUBE ANGLE (in °) 70 70.25 70.50 70.75 71
WHEEL BASE (in mm) 1017.6 1038.7 1056.8 1075.6 1092.7
REACH (in mm) 364.9 380 393.1 408 419.5
STACK (in mm) 530.3 552.2 572.1 592.2 614.3
RIDER HEIGHT (imperial) 5'3" - 5'6" 5'5" - 5'9" 5'8" - 6'1" 6' - 6'4" 6'3" - 6'7"
RIDER HEIGHT (metric) 160 - 167 165 - 175 173 - 184 183 - 193 190 - 201

Shipping & Returns

UK Deliveries
All UK deliveries are sent by express courier, usually on a next working day delivery. In stock parts, accessories and clothing orders placed before 1pm we’ll aim to dispatch the same day. All deliveries of bikes are made to order, so please allow up to 3 working days for build time before dispatch.

Built Bikes

Built bikes are shipped in large box, 95% assembled. When you receive
the box all you’ll need to do is insert the wheels, attach your pedals
and set your saddle height. If you’ve provided your bike fit data to us
we will have marked your saddle height on the seat post for you. Torque
settings, manuals and first steps videos are all available in our Vielo
owners area. All deliveries will be dispatched with tracking numbers
emailed to you.

Bikes are sent via Next Working day Courier. Some deliveries in areas
such as the highlands or islands will require additional time for
deliveries. 99.9% of our deliveries arrive on time, however sometimes
delays in transit happen. If your order is time critical please let us
know in advance and we’ll do all we can.

Read more here

International Pricing

At we display all our prices in GBP £ including UK VAT at 20%.

International prices vary for each country due to import duties, tariffs, currency differences and local taxes. For pricing in your local currency,
including having the bike built to your desired specification, please contact your local dealer or us directly at

Read more here


Vielo Frames come with a 5 Year warranty when registered at

We also offer a Crash replacement policy to customers to help them get back on the road or gravel in the event of an accident

Read more here

Cycle to Work scheme

At Vielo we accept the following forms of Cycle to Work Schemes;


Cycle Scheme

Cycle Scheme

Green Commute

Green Commute Initiative
Cycle Solutions Cycle Solutions

If you would like to order your Vielo using one of these schemes please contact us directly so we can process your vouchers. You can email us at

Cycle to Work Scheme order process

1 – Contact us (phone or email) to request a quote and check stock availability.

2 –  We’ll email you a quote with all the details about your bike.

3 – We normally ask for a £100 refundable deposit to hold the frame and parts for your bike build.

4 - You request a Cycle to Work voucher from your employer for the value of the bike.

5 – When your voucher arrives, you send it to us. We can then build your bike, claim the voucher and refund your £100 deposit.

You can email us at to start the process at any time.

All Pictures shown are for illustration purpose only. Actual product specification may vary due to product enhancement.
